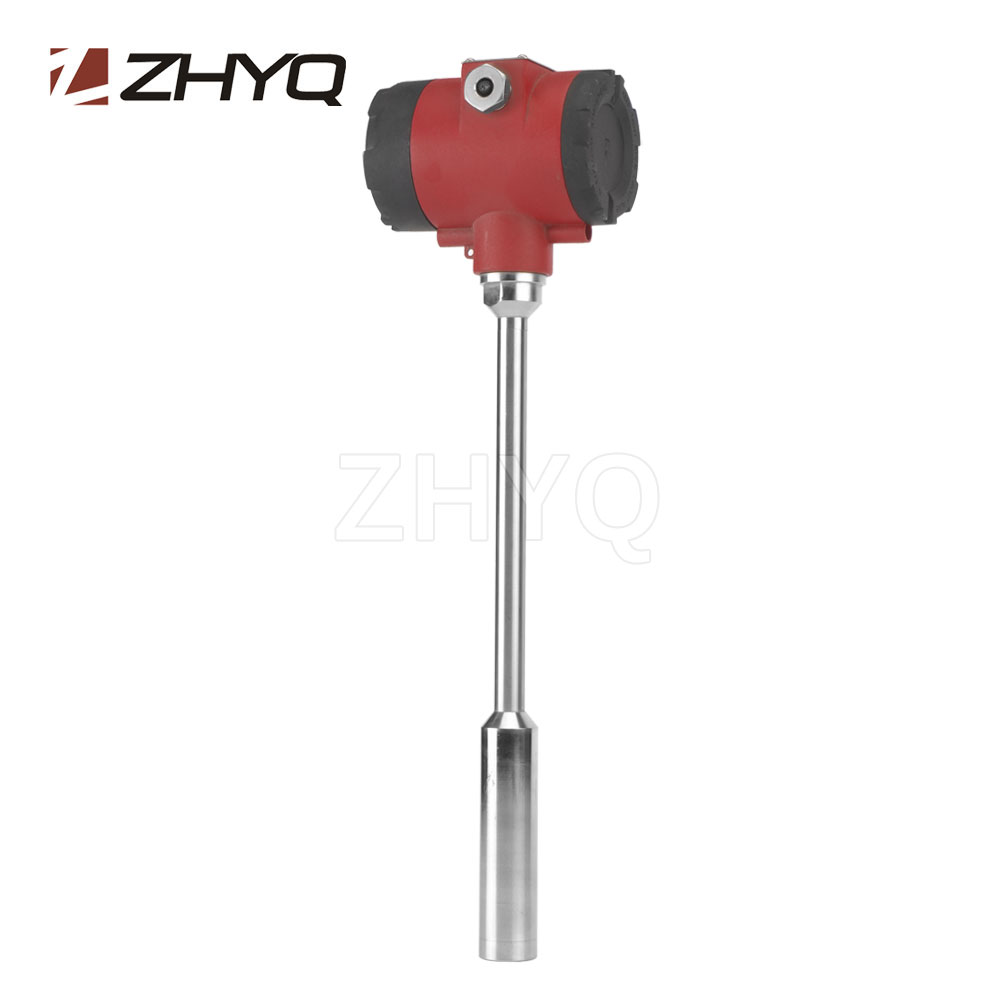

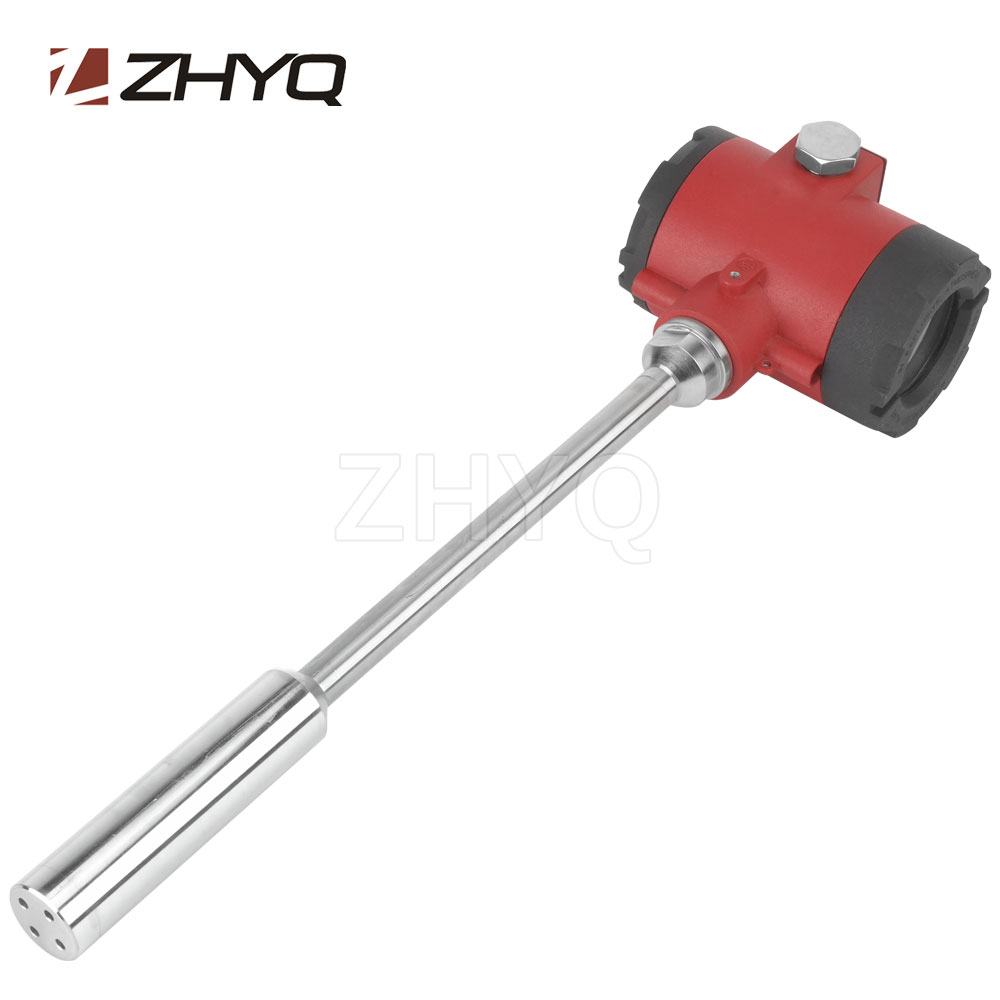

Insert liquid level transmitter
insert liquid level transmitter
Insert liquid level transmitter
insert liquid level transmitter

Insert liquid level transmitter

Model:PT124B-222

Description:

The insert liquid level transmitter gives 4-20mA standard signal via temperature compensation and linearity correction. PT124B-222 series level transmitter can insert the transducer part directly into the liquid, and it can be fixed with flange or bracket, the installation is very easy.

Send inquiry Download PDF

Tags: liquid level transmitter, Insert level transmitter, Insert liquid level transmitter

  • Corrosion proof, moist proof, leakage proof
  • Stainless steel armored-cable packing
  • Casting aluminum circuitry
  • Screw thread and flange type

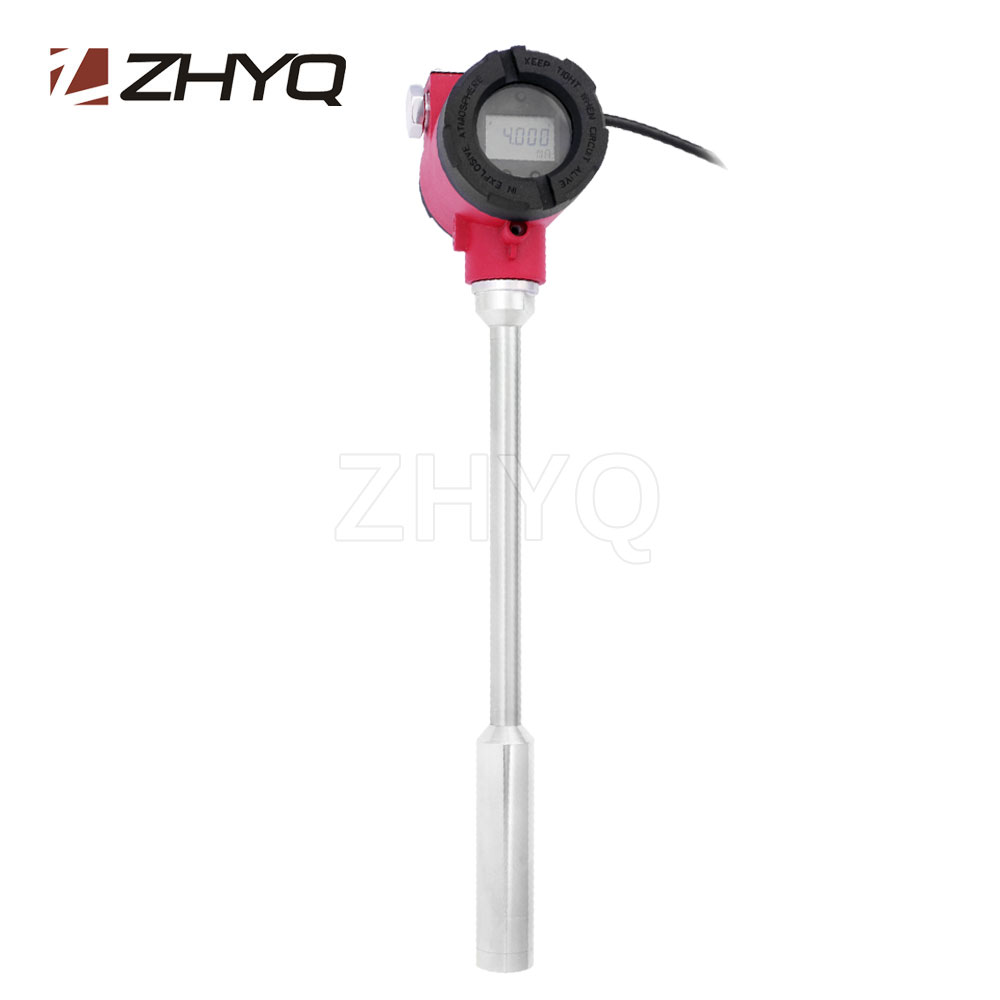

  • Equipped with local display
  • High accuracy, good stability
  • This series product is suitable to monitor the liquid level, material level and object position under the special conditions of high temperature, high pressure, strong corrosive, crystallizing, anti-clogging and solid powder, granular materials and etc, It can be widely used to monitor and control during various industrial process.
Pressure range 0~0.5mH2O~5mH2O
Over load 150%FS
Output 4-20mA
Power supply 12~36VDC
Combine error ±1.0%FS; ±0.5% FSO(Including Linearity, Repeatability & Hysteresis)
Long term stability ≤ +/-0.2%FS/year
Repeatability ≤ +/- 0.2%FSO
Response time <10ms
Pressure connection insert mounting
Explosion proof grade ExiallCT4
Operating temperature -20℃ ~ 85℃
Temperature compensation -10℃ ~ 60℃
Protection grade IP68
Mounting Thread M20 ×1.5; Flange mounting DN15 、 DN25 、 DN50 、 DN80
