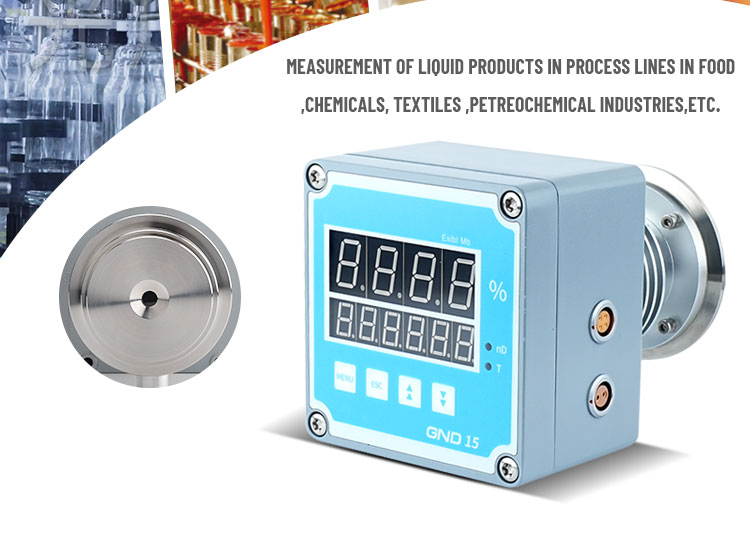

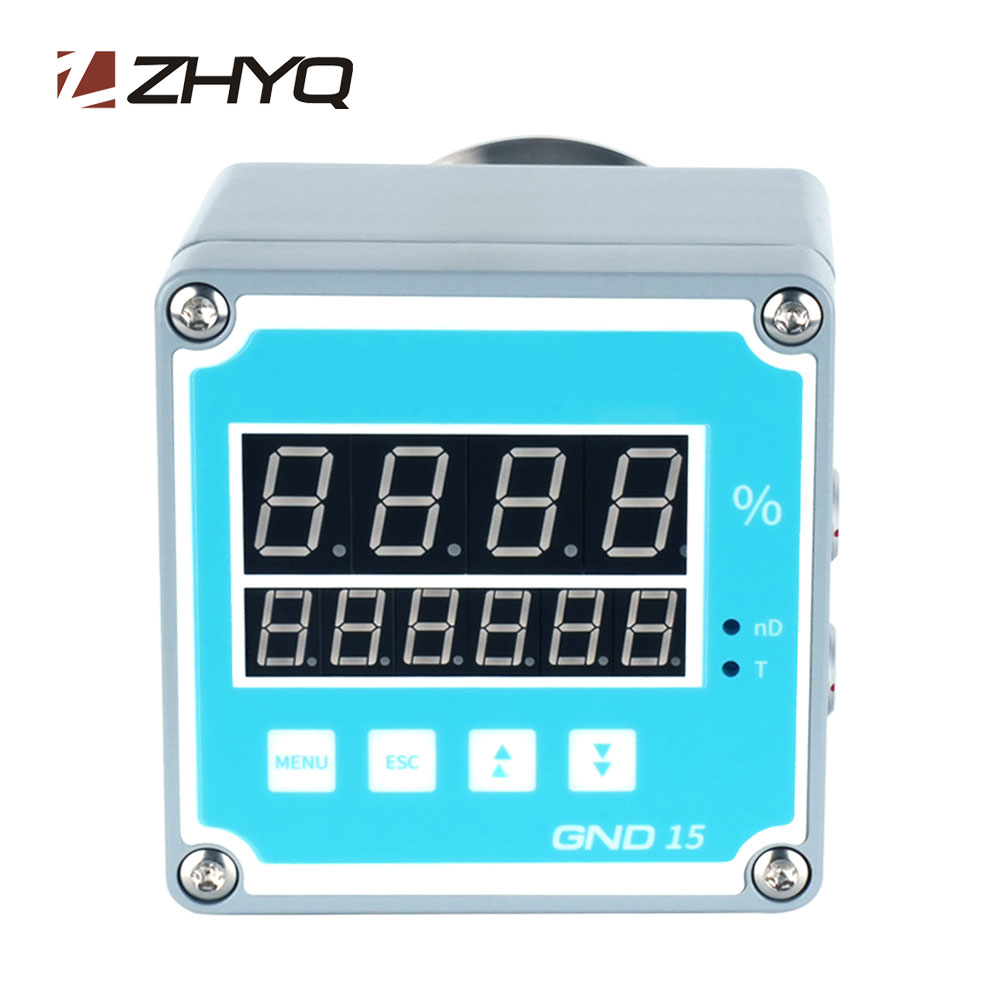

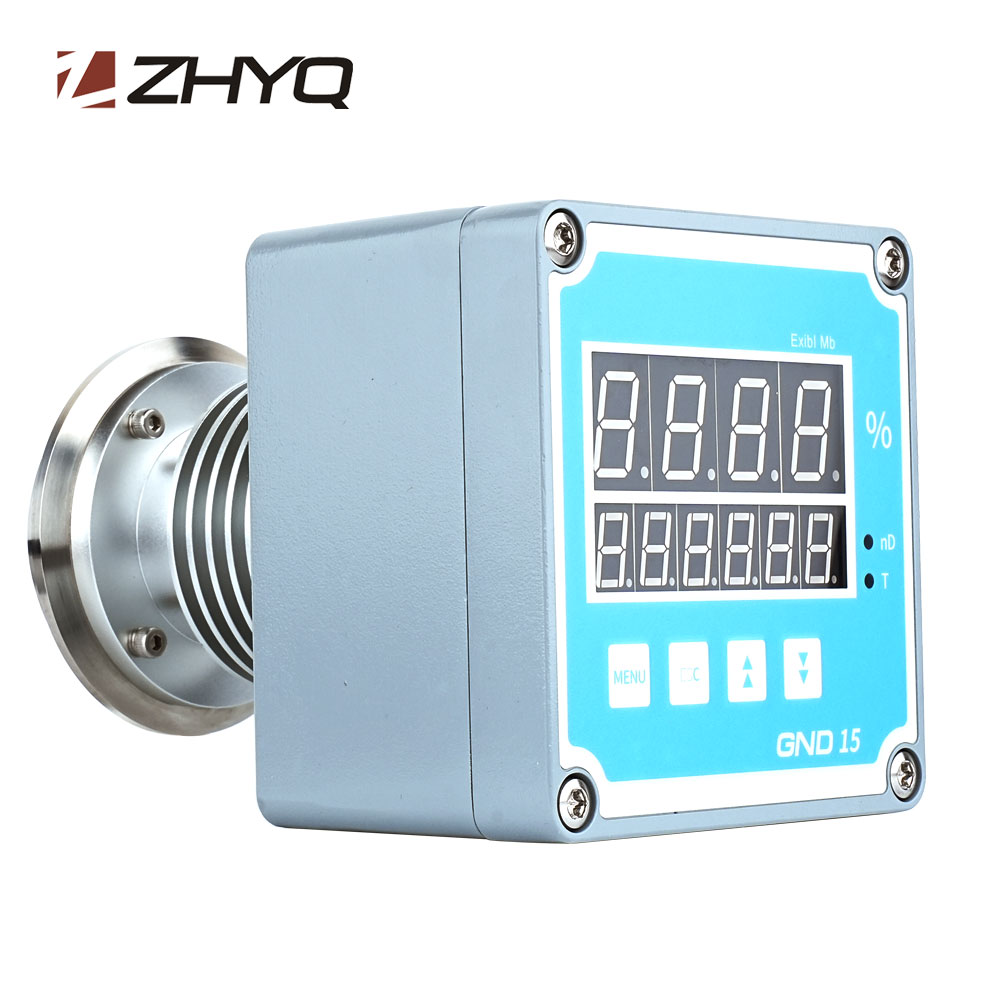

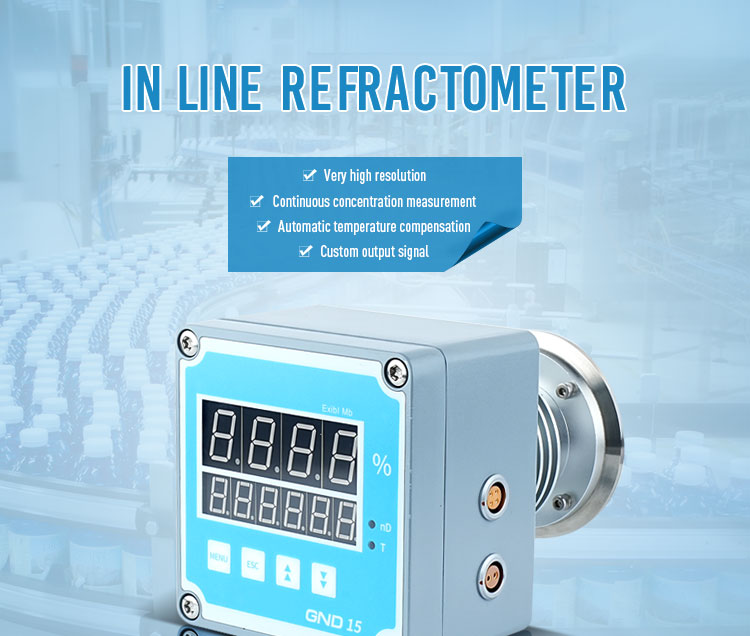

CZ-B In-line Refractometer (Room temperature application )

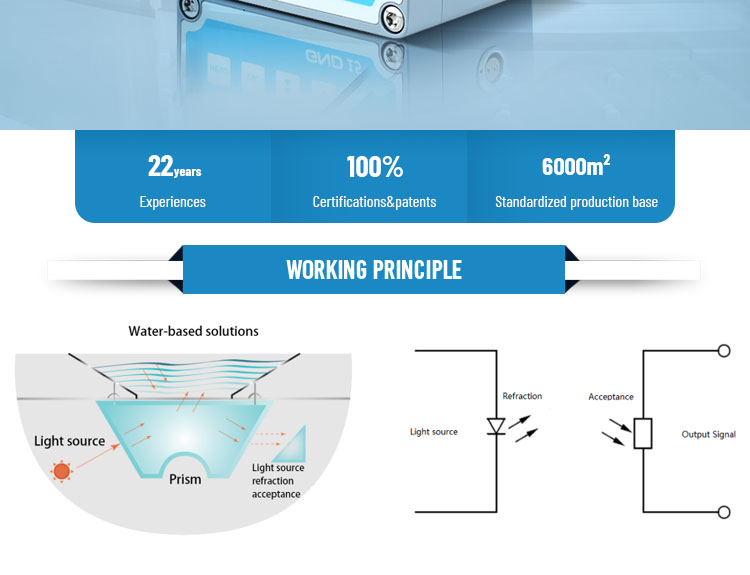

The In-line Brix-Monitor CZ-B is a refractometer that detects the Refractive Index of a sample and outputs , the Brix(%) value on the display , can also transmit measured data to external devices via 4 to 20mA or RS-232C. CZ-B series has the function of automatic temperature compensation according to the temperature of the tested medium , when the tested medium temperature changes , the Brix value ( soluble solids ) after temperature compensation is displays and the output changes accordingly .

Send inquiry Download PDF

1.Automatic temperature compensation

2.Lightweight , compact and easy to install on site .

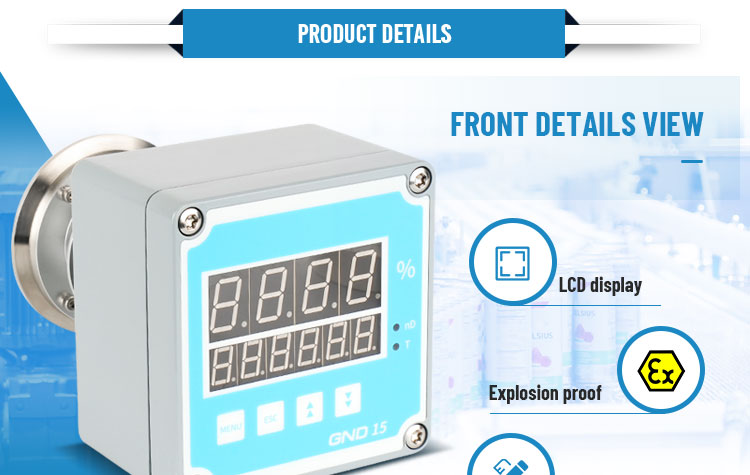

3.LED display ,

4.Easy to operate, easy to connect with other devices for automatic control

5.Inline real-time monitoring and control of liquid substance concentration in various industries

1.Cutting oil , mold release agent , quenching liquid , cleaning liquid , emulsion in the machining industry

2.Chemicals and allied , pulp & paper , tobacco , environmental protection

3.Biorefining , Metals and mining

4.Food industry , Dairy , Beverage industry , Fruit and effect processing ,

5.Starch sweetener , Sugar and sweeteners

6.Water-based solutions

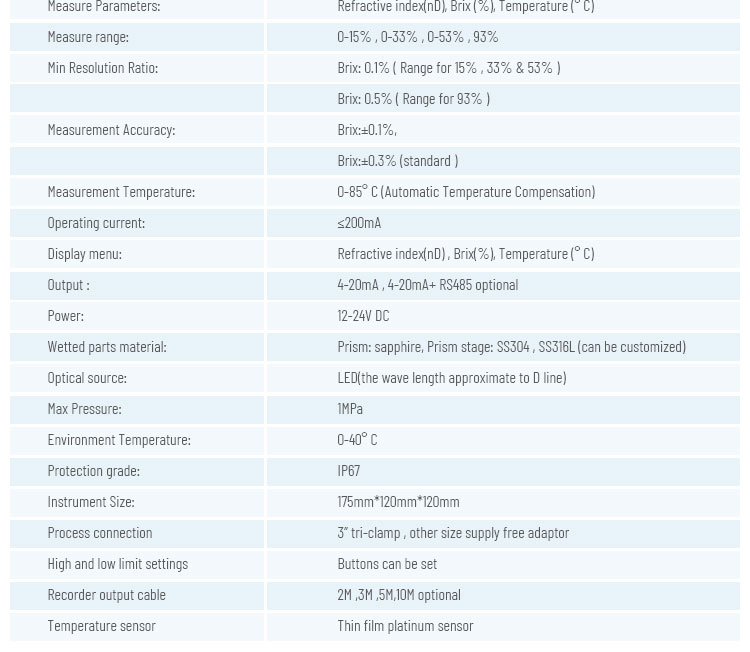

Model: CZ-B
Measure Parameters: Refractive index(nD), Brix (%), Temperature (° C)
Measure Range: 0-15% , 0-33% , 0-53% , 93%
Resolution Ratio: Brix: 0.01%, nD: 0.00001
Measurement Accuracy: Brix: ±0.1%, nD: ±0.0001, Brix: ±0.25%, nD: ±0.0025, Brix: ±0.5%, nD: ±0.0005,
Measurement Temperature: 0-120℃(Automatic Temperature Compensation)
Operating Current: ≤200mA

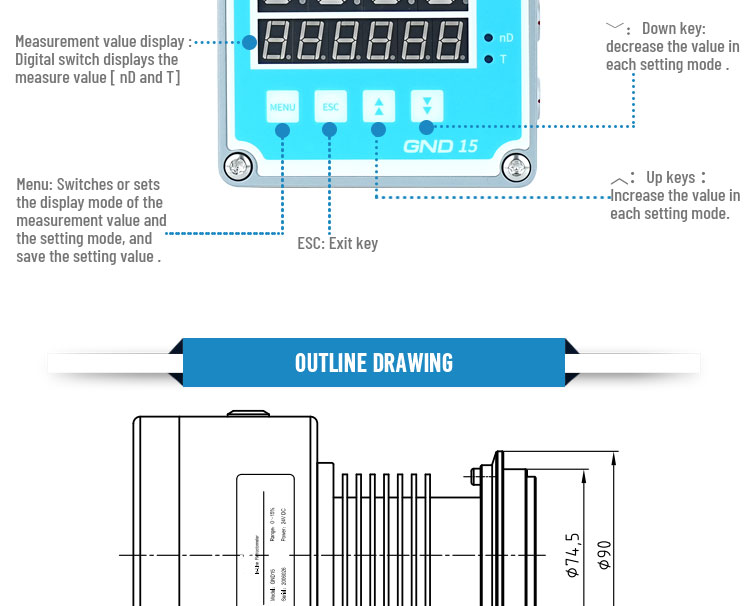

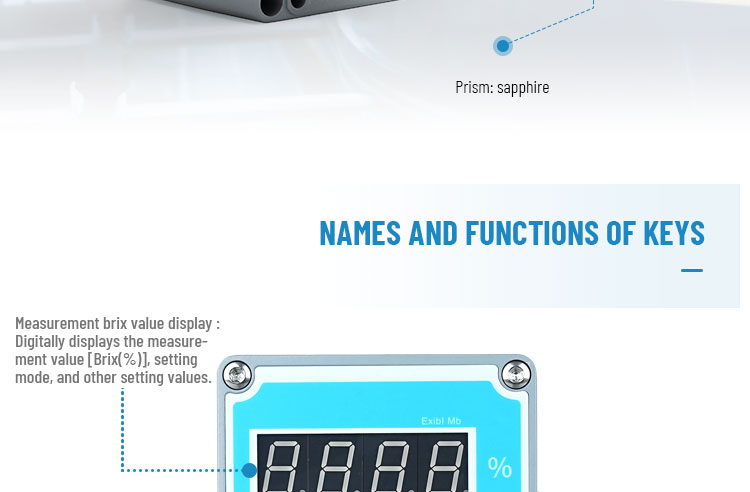

Display Menu: Refractive index(nD) , Brix(%), Temperature (° C)

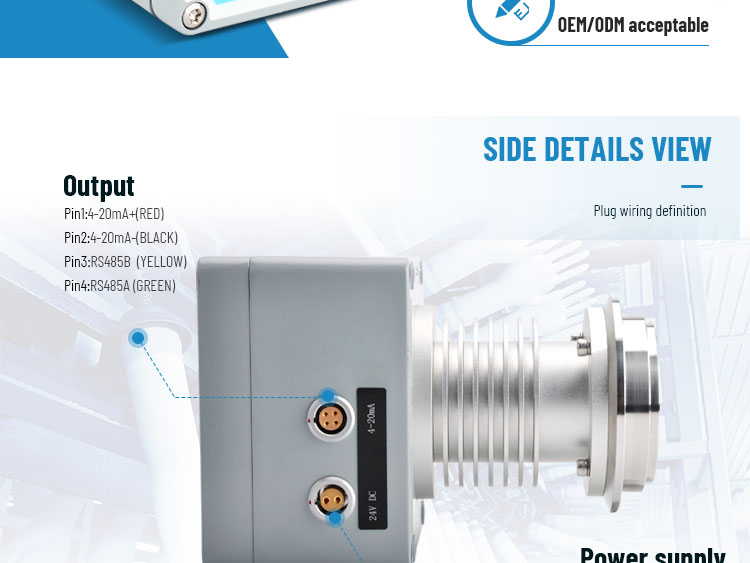

Output: 4-20mA , RS485 optional
Power: 24V DC

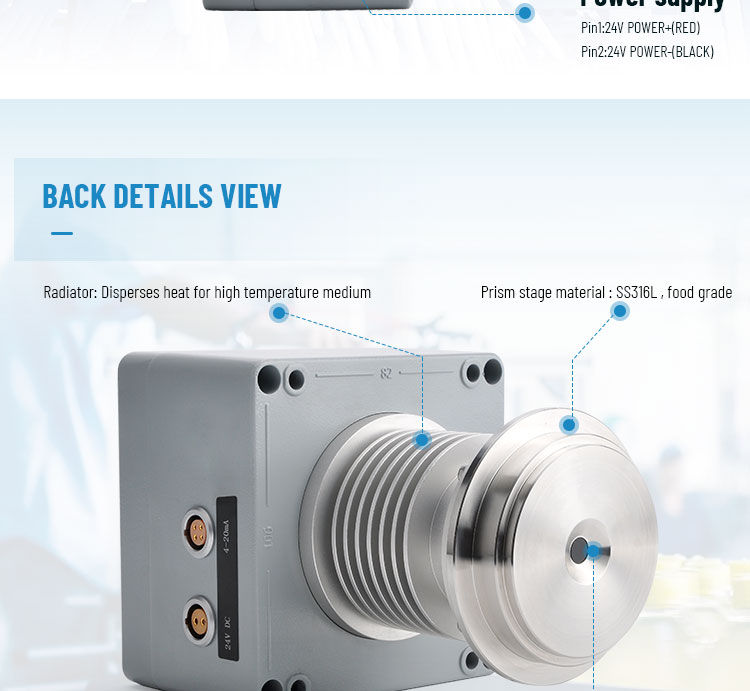

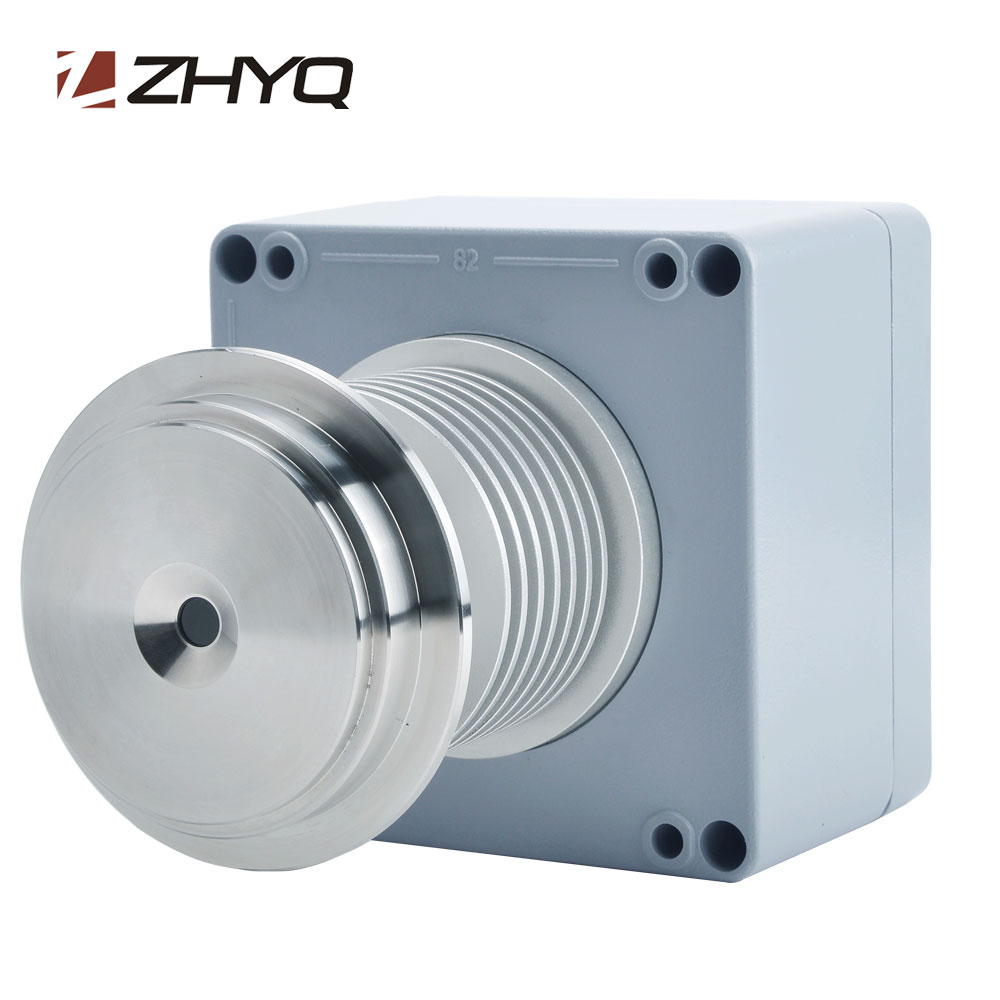

Wetted Parts Material: Prism: sapphire, Prism stage: SS304 , SS316L (can be customized)
Optical Source: LED(the wave length approximate to D line)
Max Pressure: 1MPa
Environment Temperature: 0-40℃
Protection Grade: IP67

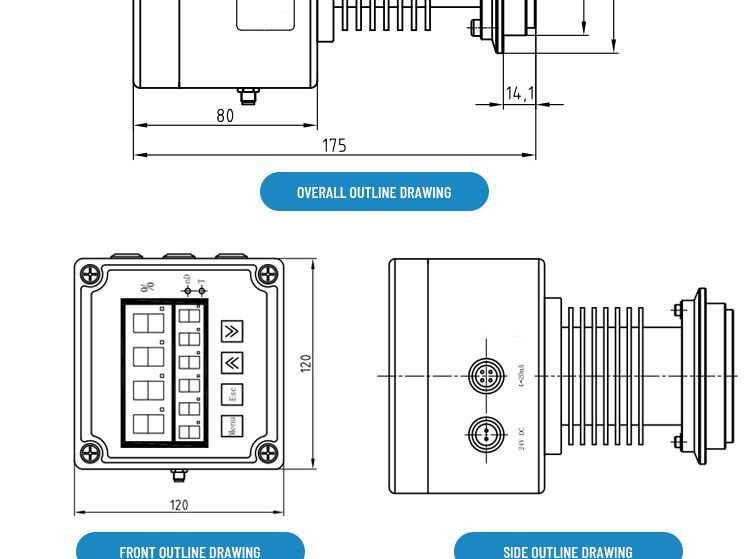

Instrument Size: 175mm*120mm*80mm
Process Connection: 3” tri-clamp , other size customized
High and Low Limit Settings: Buttons can be set
Recorder Output Cable: 2M ,3M ,5M,10M optional
Temperature Sensor: Thin film platinum sensor
