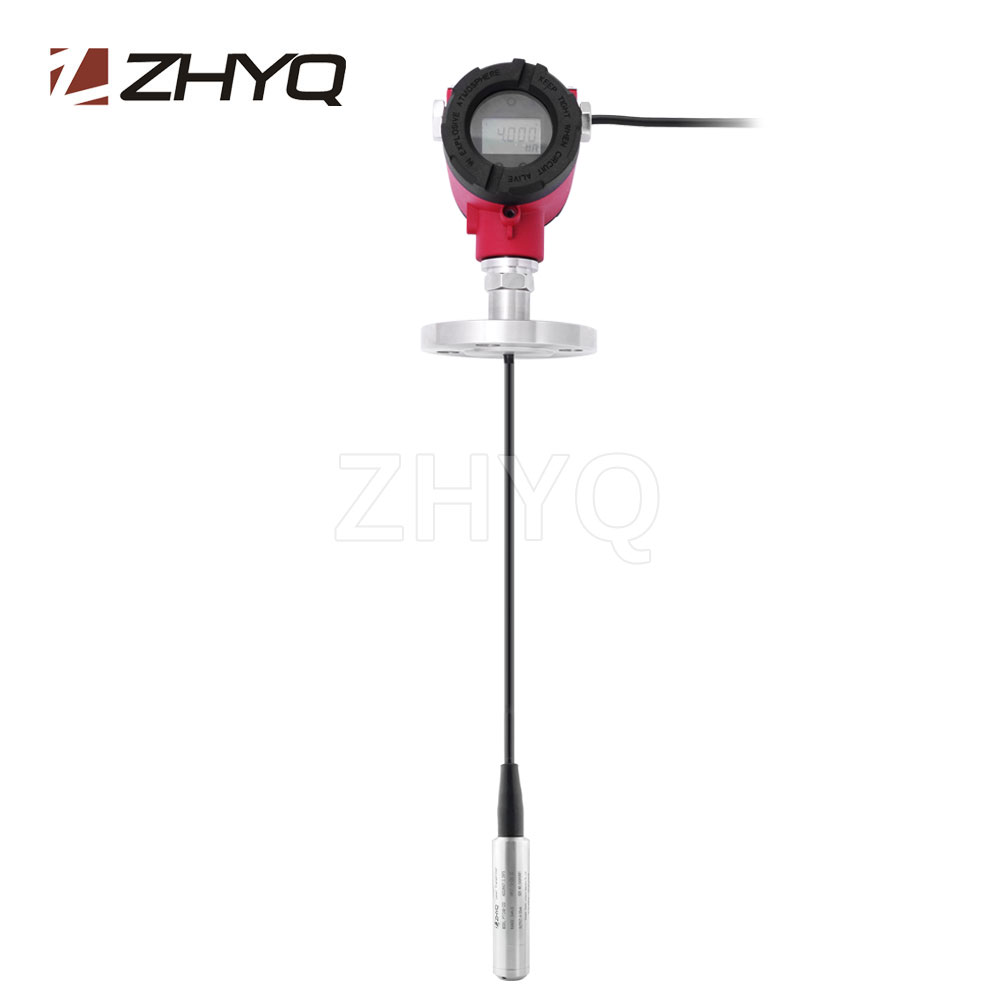

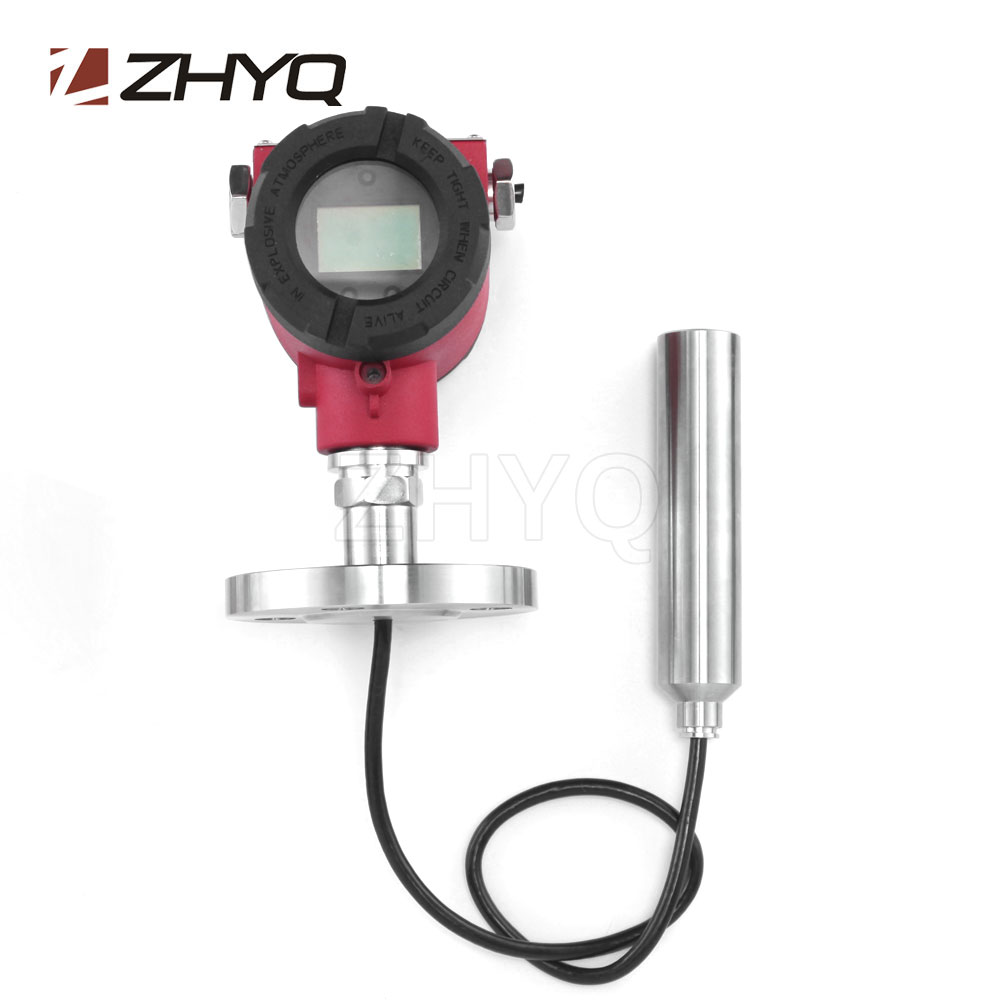

Local LCD display level transmitter

Model:PT124B-221

Description:

Local LCD display 4-20mA level transmitter for sale adopts superb encapsulation technology and perfect assembly process to make sure the products of long-term work without leakage, and the cable with vent tube, it makes the measurement value not affect by the external atmospheric changes.

Send inquiry Download PDF

Tags: Local display level transmitter, 4-20mA level transmitter, LCD display level transmitter

  • Measurement range from 1m to 50m H2O
  • Moist proof, leakage proof
  • Equipped with local display
  • High accuracy, good stability
  • It can be used for liquid measuring for petroleum, metallurgy, hydraulic, city water supply, sewage treatment, hygrometry and etc.
Pressure range 0~1mH2O~50mH2O
Over load 150%FS
Output 4-20mA
Power supply 12~36VDC
Combine error ±0.5% FSO (Including Linearity, Repeatability & Hysteresis )
Long term stability ≤ +/-0.2%FS/year
Repeatability ≤ +/- 0.2%FSO
Response time <10ms
Pressure connection throw-in type
Explosion proof grade ExiallCT4
Operating temperature -20℃~85℃
Temperature compensation -10℃~60℃
Protection grade IP68
