Digital Pressure-Temperature Indicator / Alarm



The digital pressure indicator designed with advanced technology in the world, it is small in volume, light in height and save power and completed function, it can display both the pressure and temperature.

Send inquiry Download PDF
  • Easy to install and read value
  • Pressure display
  • Three types in size to choose

It can be widely used not only in situation of display and autocontrol in hydraulic pressure, oil, plastics, latex, printing and dyeing, textile industry.

Display Double four digits high brightness green and ren radiation numeral pipe
Display range 001-9999Mpa (radix point alterable)
Precision 0.2%FS+-1bit
Pressure signal input 2mV/V ;3.3mV/V 4-20mA, 0-10V (Optional)
Sampling speed 20 times/second
Work temperature and humidity 0-55’C, ≥80%RH
Power supply 85-265VAC 50Hz-60Hz

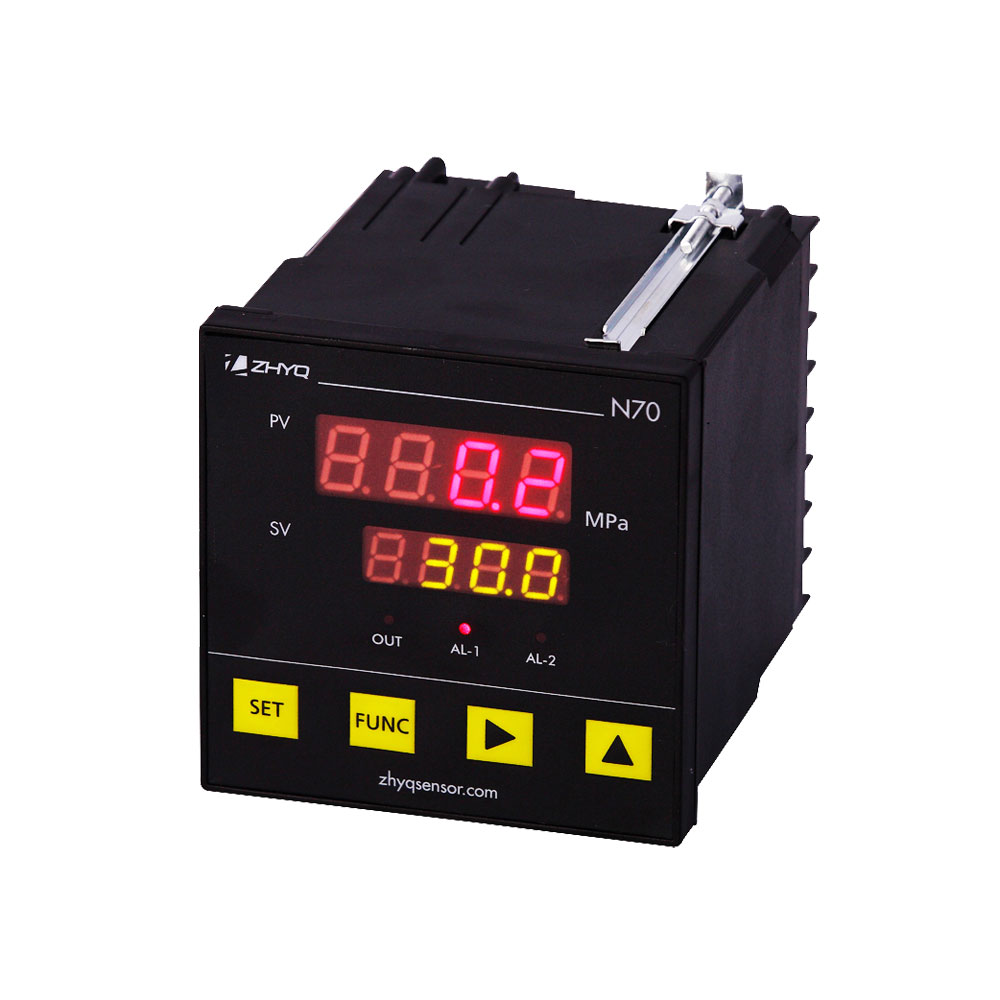

Size N70: 96mm x 96mm x 100 mm (W x H x D)

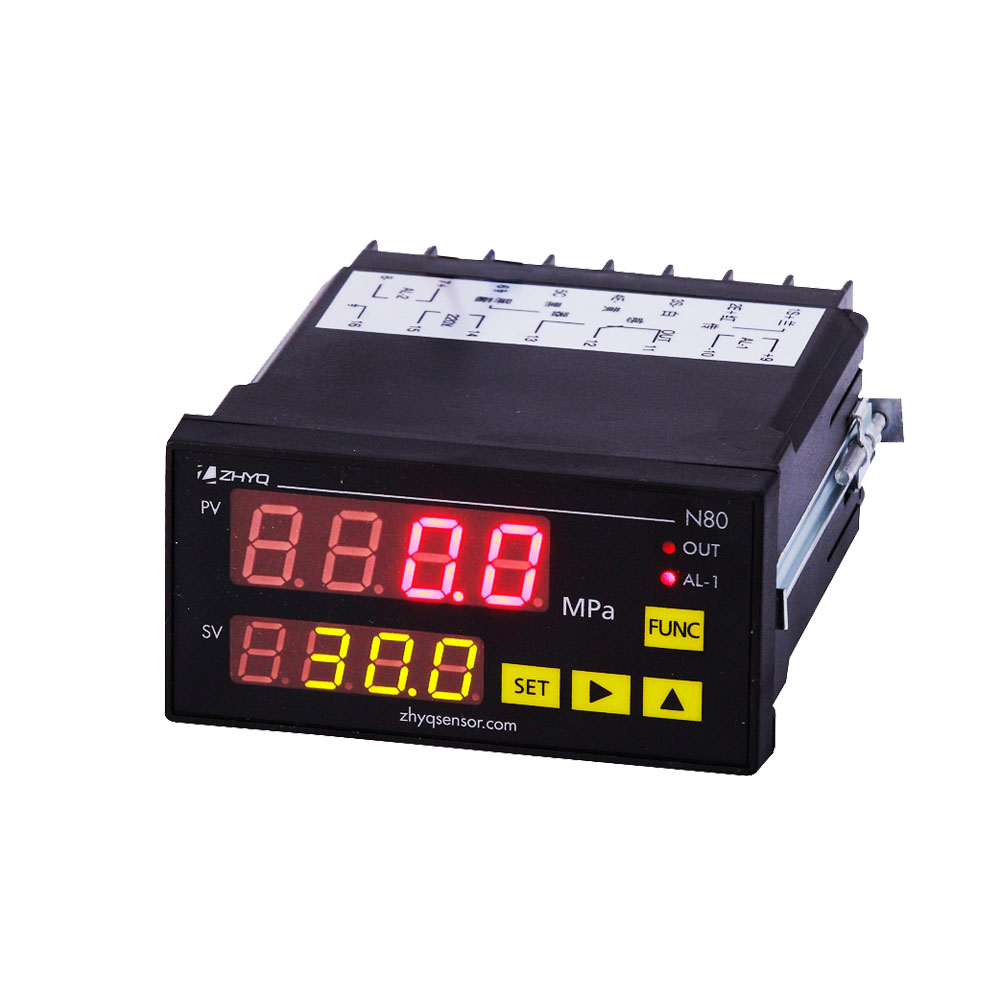

N80: 96mm×48mm×100 mm (W x H x D)

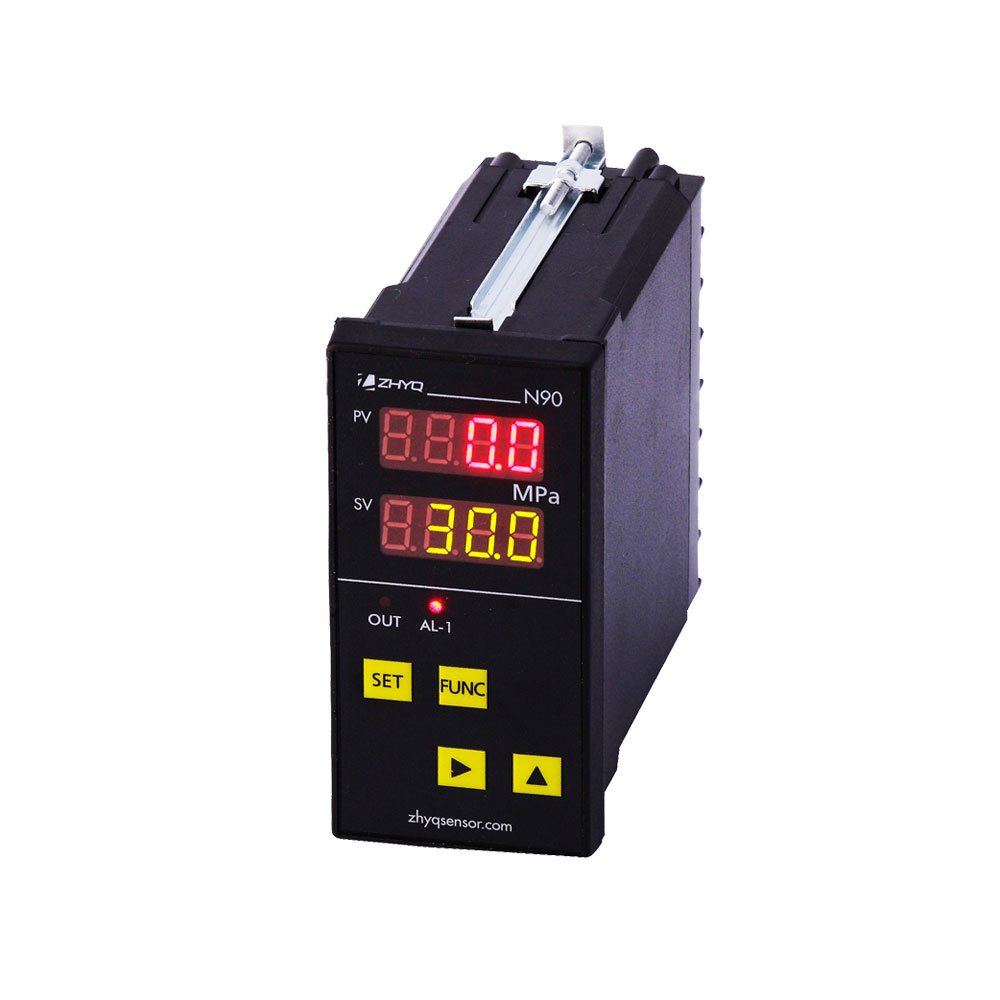

N90: 48mm×96mm×100 mm (W x H x D)

Weight approximately 400g/200g/200g
