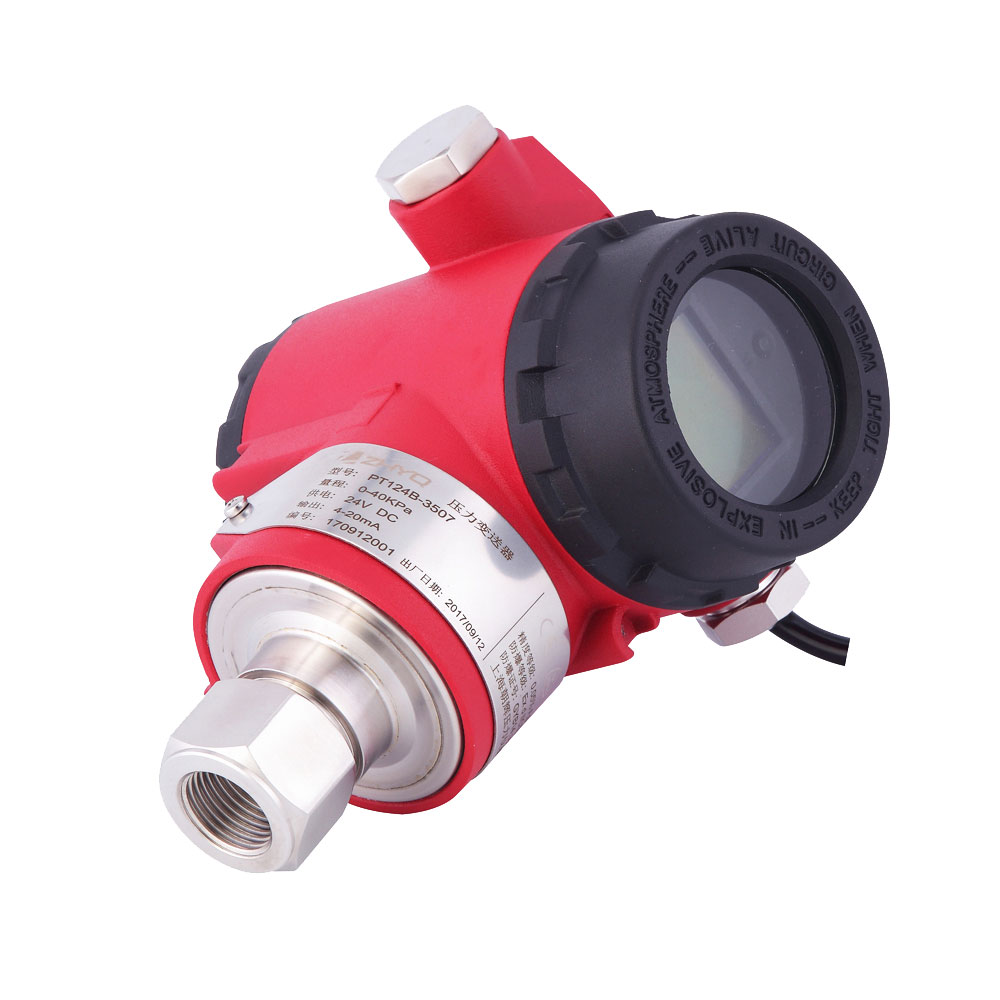

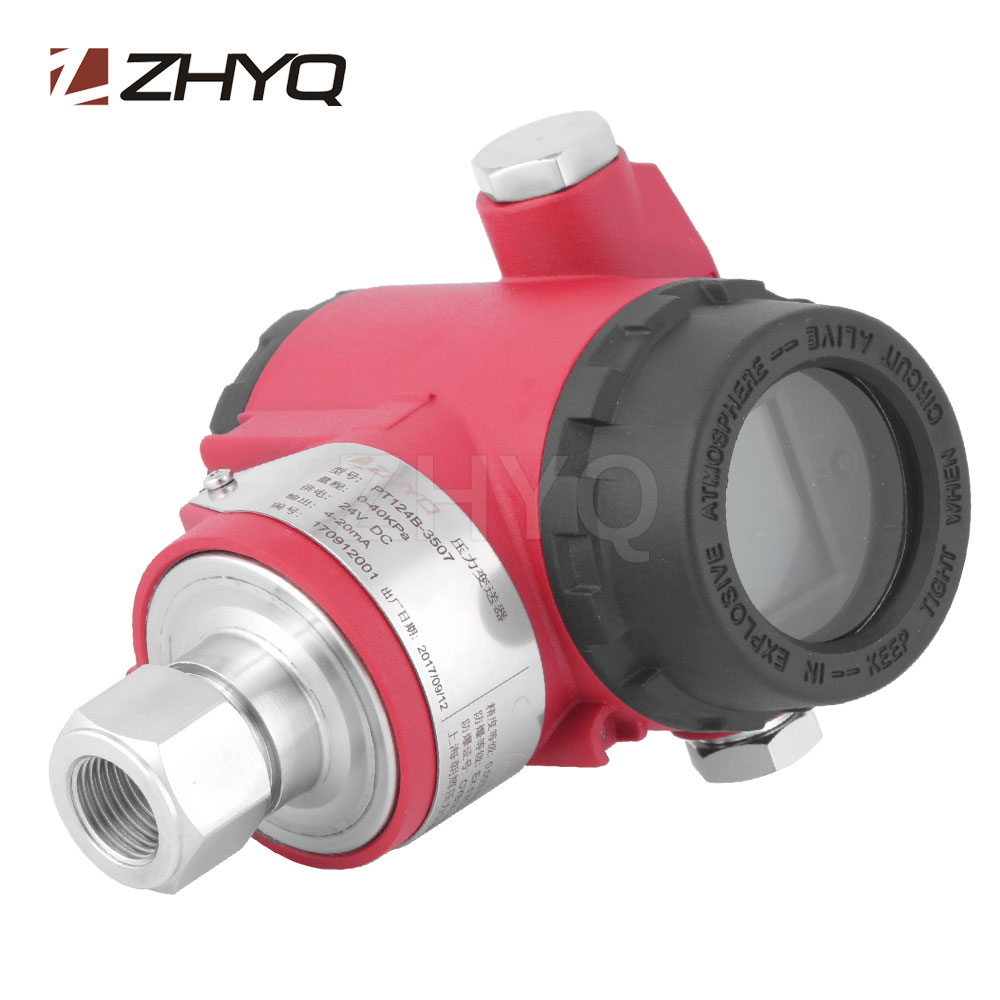

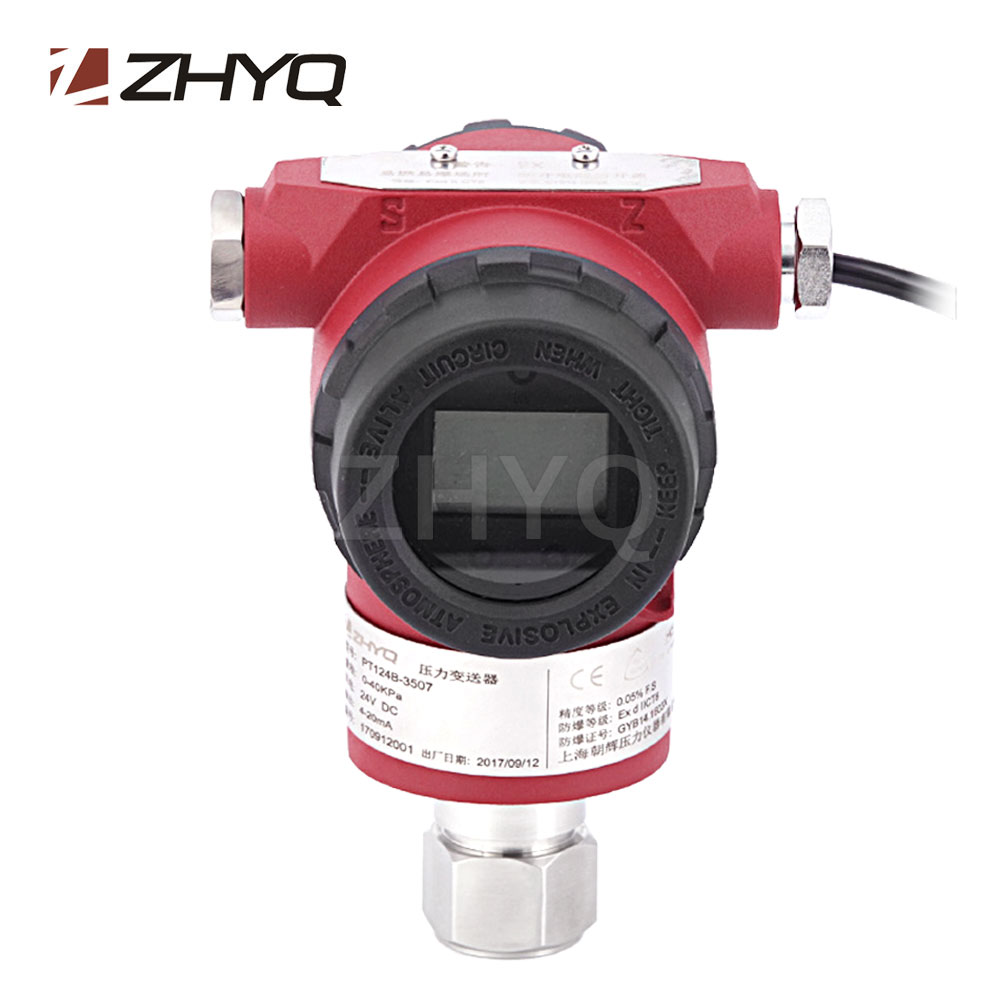

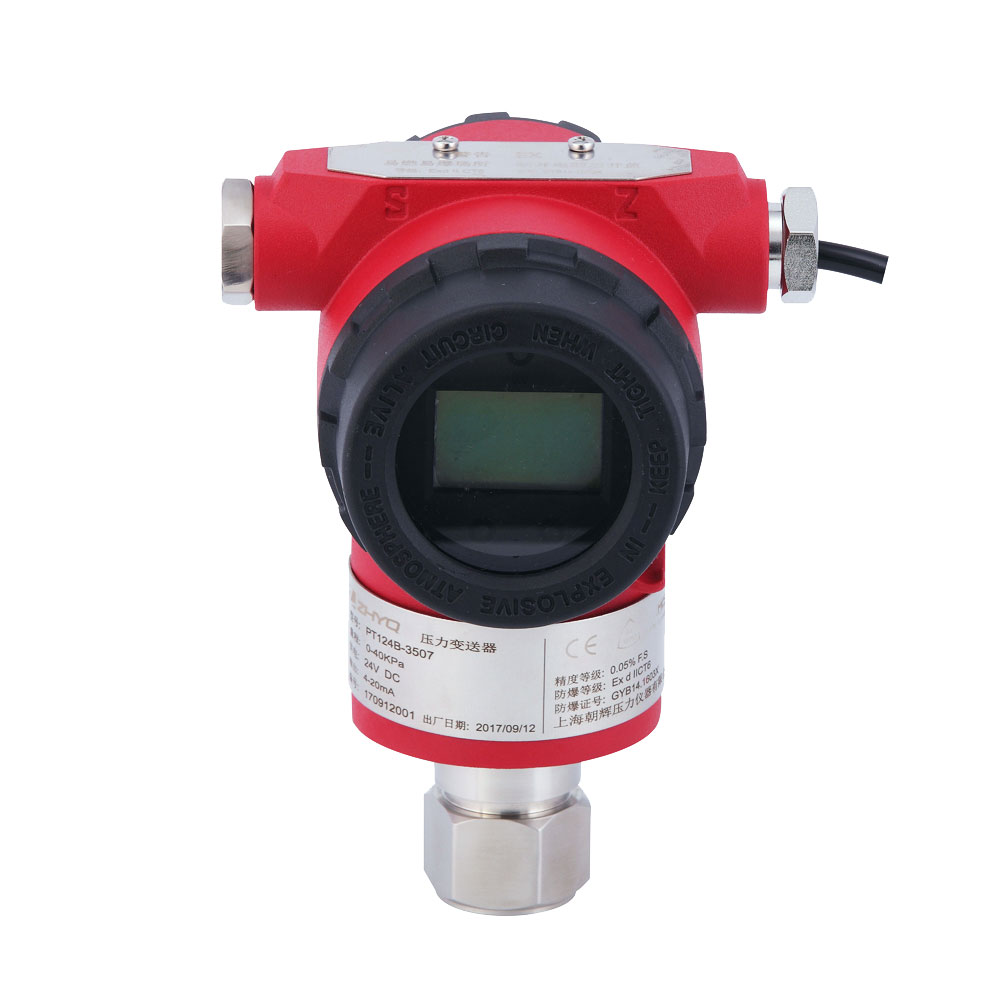

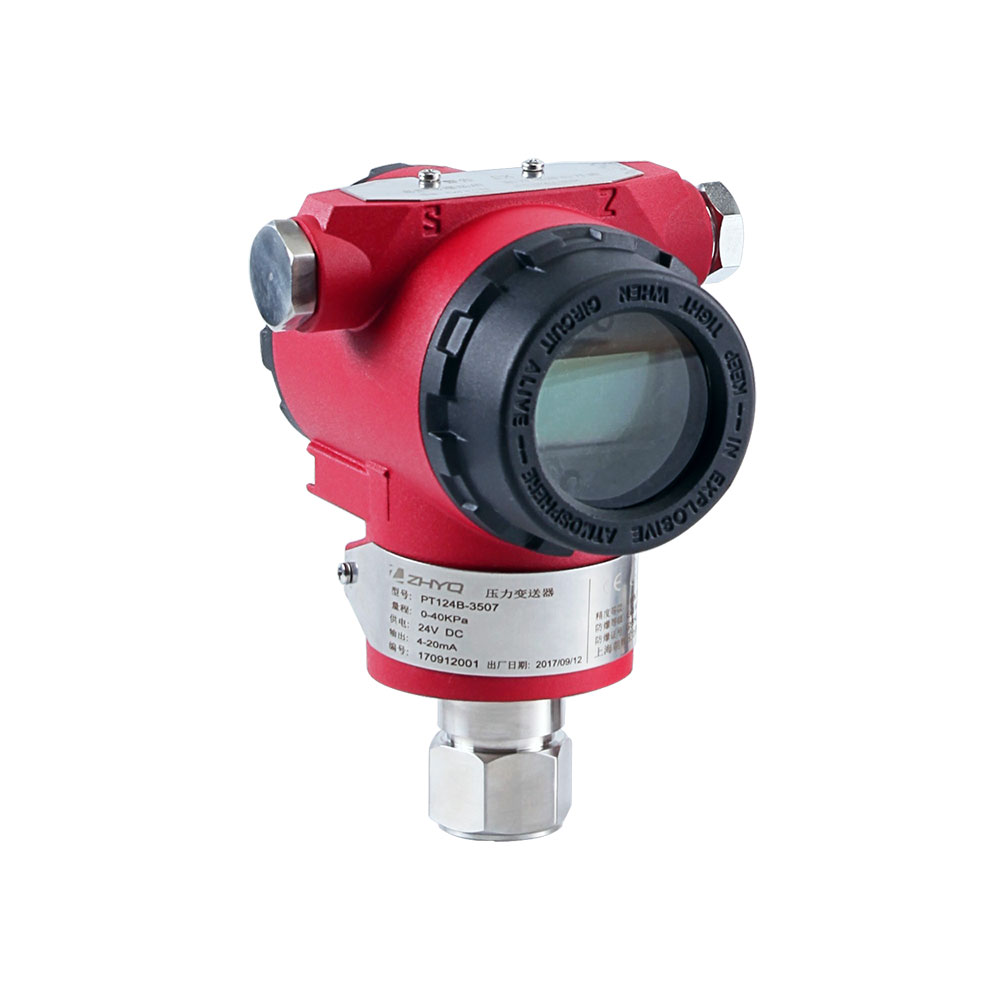

Single crystal silicon absolute and gauge pressure transmitter
Model:PT124B-3507
Description:
The absolute and gauge pressure transmitter features single crystal silicon resonant sensor and are suitable to measure liquid, gas, or steam pressure. It can give output a 4 to 20mA DC signal corresponding to the measured pressure.
Send inquiry Download PDF- Adopts global leading high precision silicon
- Accuracy +/-0.075%
- Advanced static pressure performance
- Error less than +/-0.1%/10MPa
- Internal integrated high sensitivity temperature transducer
- Perfect thermal drift
- Fast response time
Petrol oil, chemical industry, electrical power, paper making, iron and steel, coal gas and etc.
| Item | Specification |
| Medium | Gas, steam, liquid |
| Measurement range
(Non migration) |
0-0.6KPa-20Mpa |
| Accuracy | +/-0.075%, +/-0.1% |
| Wetted parts material | SS316L, Hastelloy C |
| Output | 2-wire 4-20mA, HART communication optional, linear output or square root output available |
| Ambient temperature limited | -40~85℃
-20~65℃ (with LCD display, fluorine rubber O-ring) |
| Protection grade | IP67 |
| Electrical connector | M20*1.5 cable sealing buckle, terminal suitable for 0.5-2.5mm2 cable |
| Process connector | Standard 1/2NPT female, with 1/2NPT, G1/2 and M20*1.5, KF16 vacuum interface available |
