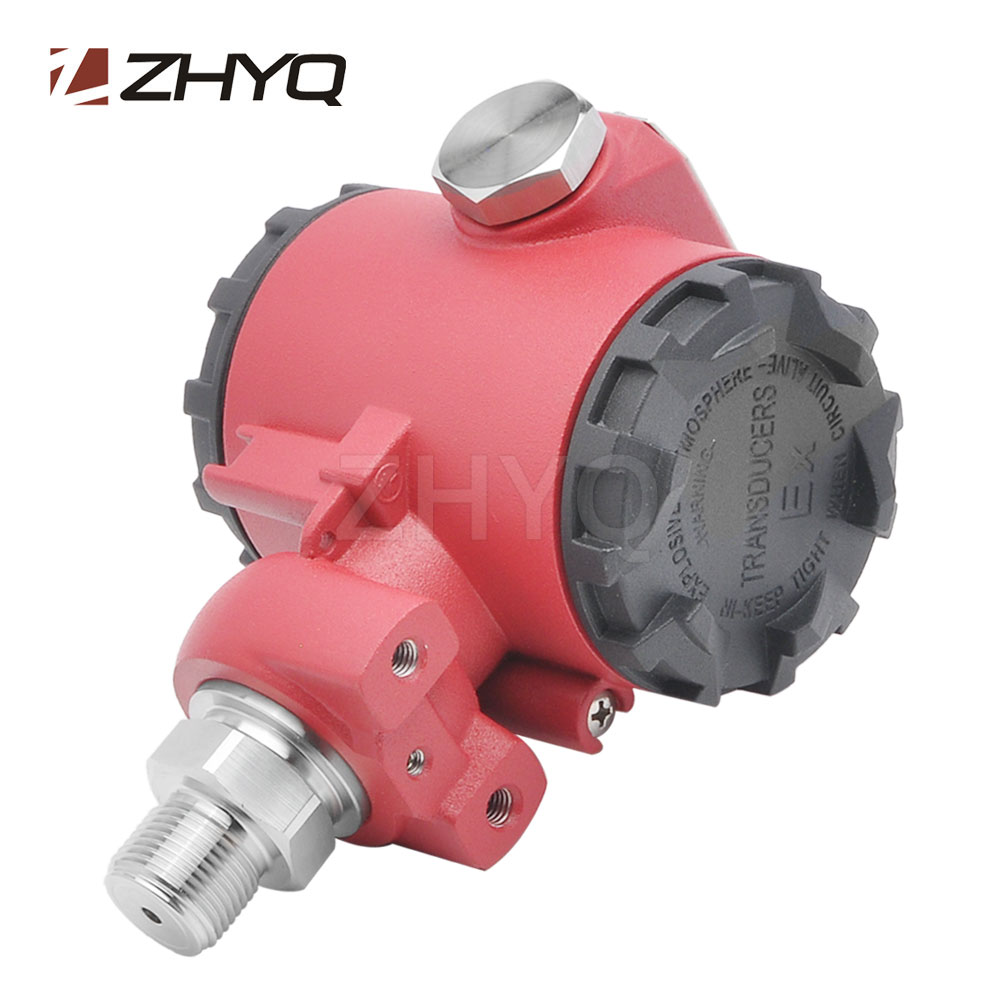

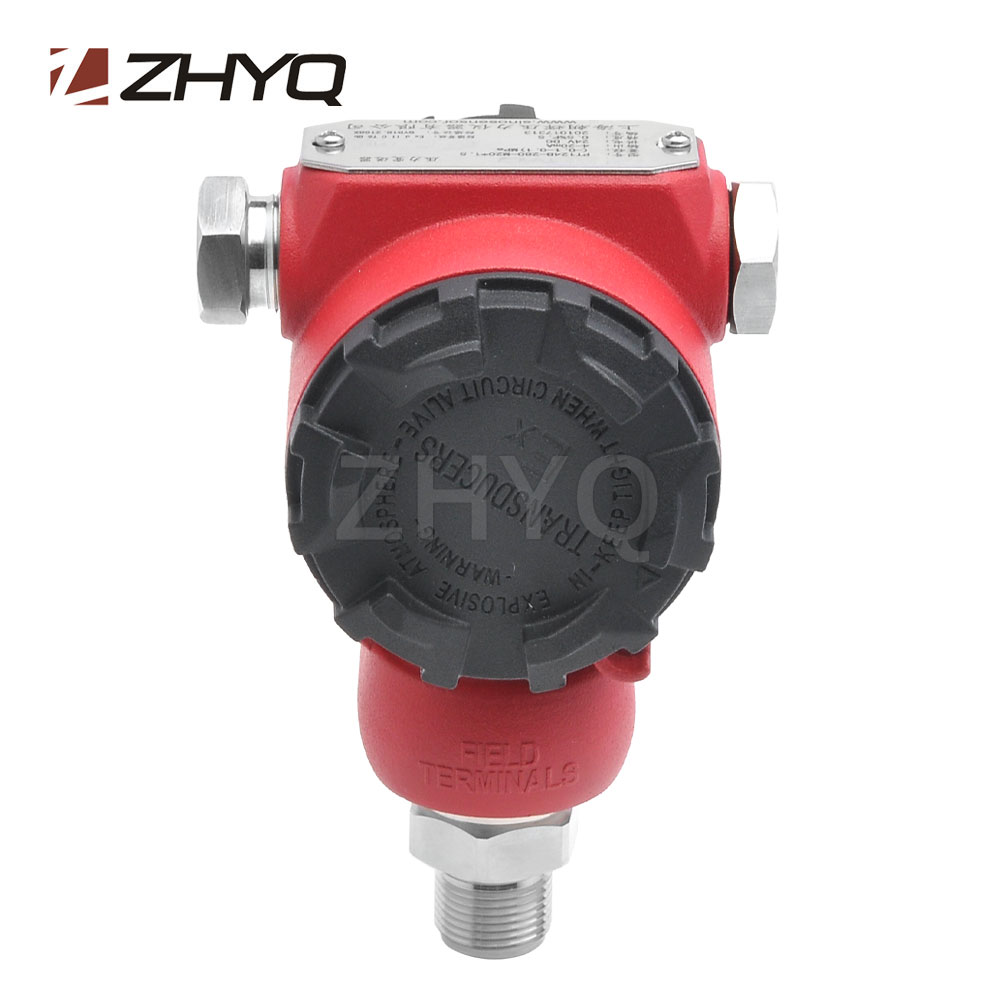

Explosion proof pressure transmitter
Model:PT124B-280
Description:
The explosion proof pressure transmitter designed with flameproof structure, The protection class of the transmitter house is IP65, it is suitable for outdoor installation, LCD display optional, it easy to read value directly. With its high performance, this series product can interchange some high-grade pressure transmitters, for high precision measurement and control.
Send inquiry Download PDF
- Various process connections design
- High accuracy and stability
- Explosion proof grade ExibllCT4
This product is used to measure and control the fluid pressure under harsh environment, such as liquid level, oil field, mine, chemical fiber, electric power, furnace, natural gas and so on.
| Pressure range | -1~0~1bar; 0-1bar~2000bar |
| Over load | 150%FS |
| Burst pressure | 300%FS |
| Output | 4-20mA |
| Power supply | 12~36VDC |
| Response time | <5ms |
| Combine error | 0.5%FSO(Including Linearity, Repeatability & Hysteresis) |

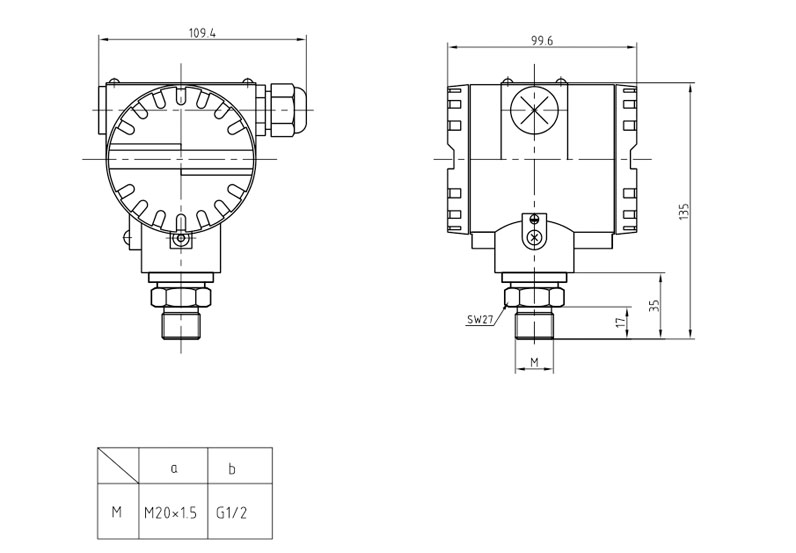

| Pressure connection | M20×1.5 ,G1/2 , G1/4, 1/2NPT（ customer tailor ） |
| Operating temperature | -20℃ ～ 85℃ |
| Temperature compensation | 0℃ ～ 60℃ |
| Electrical connector | Terminal Block |
| Explosion proof grade | ExiallCT4 |
