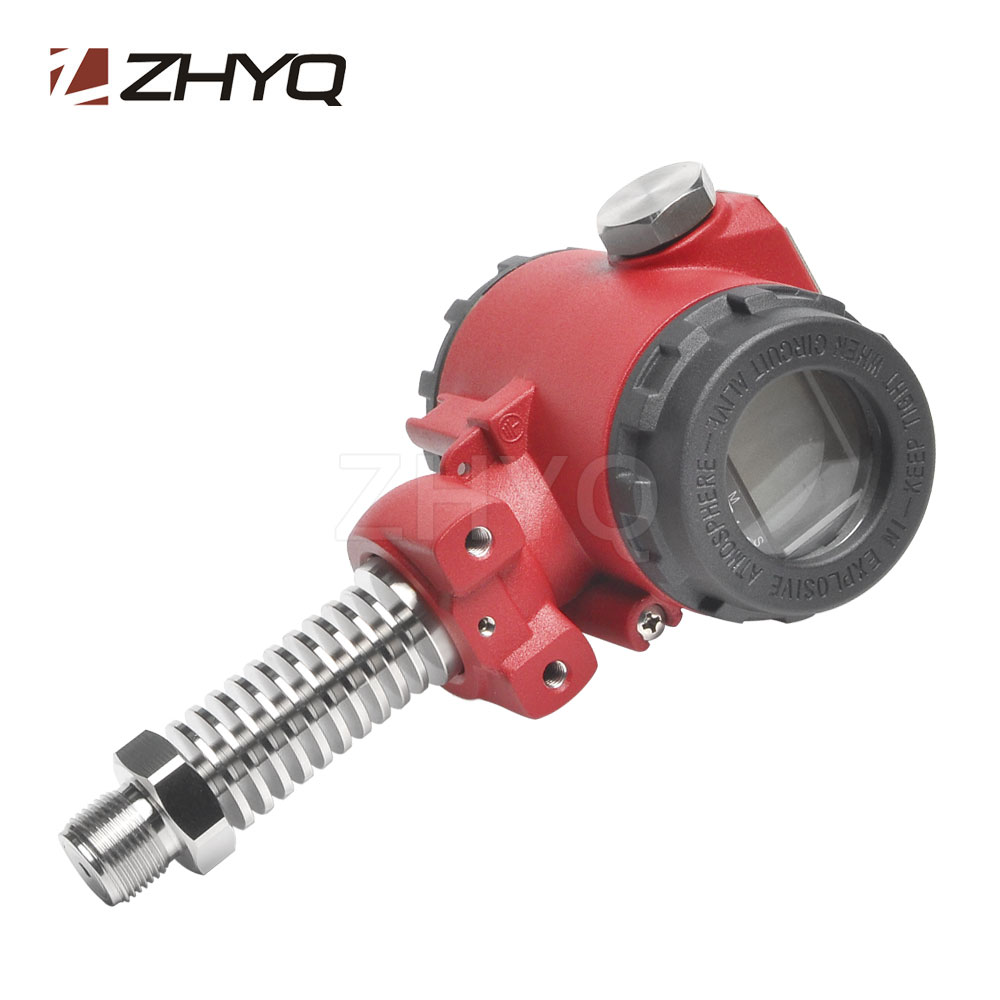

High temperature explosion proof pressure transmitter
high temperature explosion proof pressure transmitter

High temperature explosion proof pressure transmitter

Model:PT124B-285

Description:

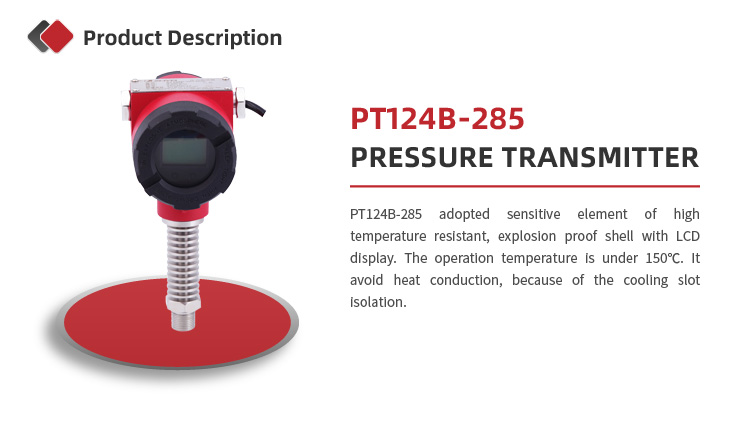

The explosion proof pressure transmitter adopts imported thermo stability sensing element, it make the transmitter work stability under 150℃.There are cooling slot between the pressure sensor chips and amplifier electrical circuit, it avoids the heat conduction efficiently.

Send inquiry Download PDF

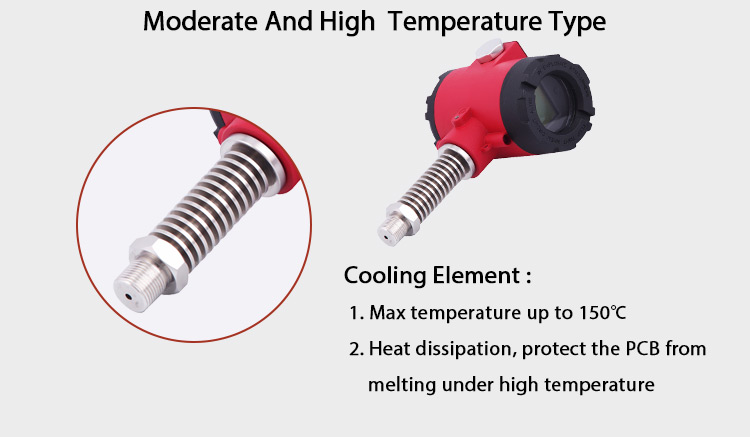

  • Cooling slot design, fit for 150℃ condition
  • High accuracy, high stability
  • Explosion proof grade ExibllCT4

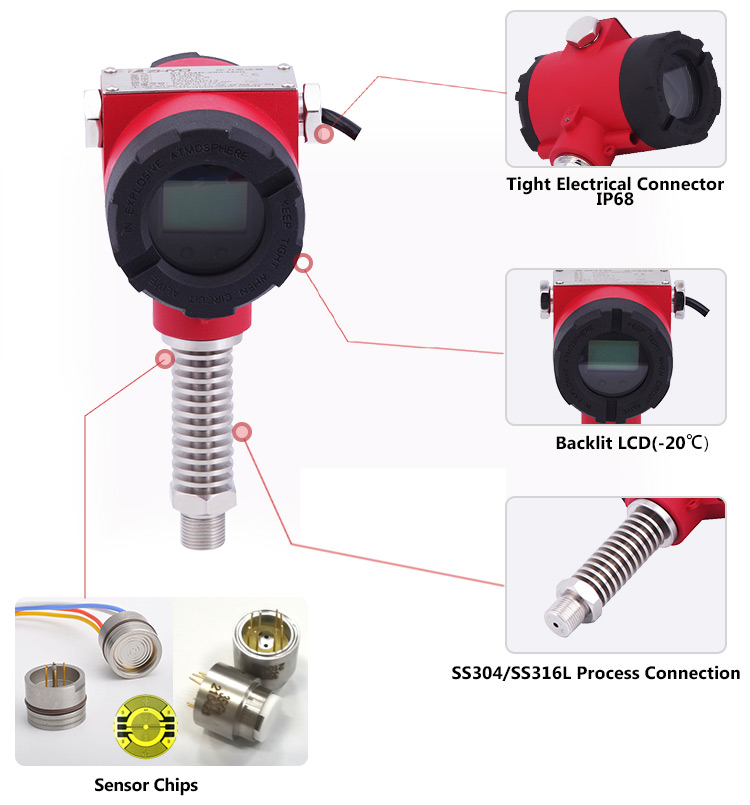

  • Local LCD display

This product is used to measure and control the fluid pressure under harsh environment, such as liquid level, oil field, mine, chemical fiber, electric power, furnace, natural gas and so on.

Pressure range -1~0~1bar; 0~1~2000bar
Over load 150%FS
Burst pressure 300%FS
Output 4-20mA
Power supply 12~36VDC
Response time <5ms
Combine error 0.5% FSO(Including Linearity, Repeatability & Hysteresis)

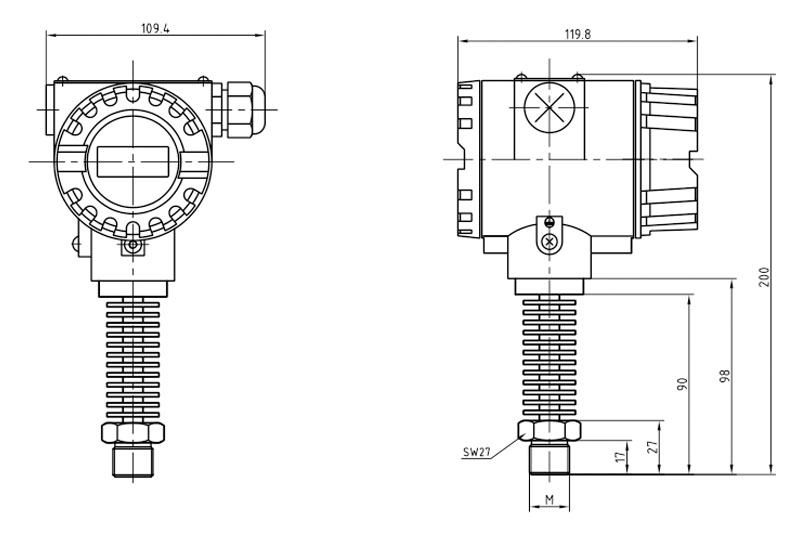

Pressure connection M20×1.5 , G1/2 , G1/4 ,1/2NPT(customer tailor )
Operating temperature -20℃~85℃
Temperature compensation 0℃ ~60℃
Electrical connector Terminal Block
Explosion proof grade ExiallCT4
