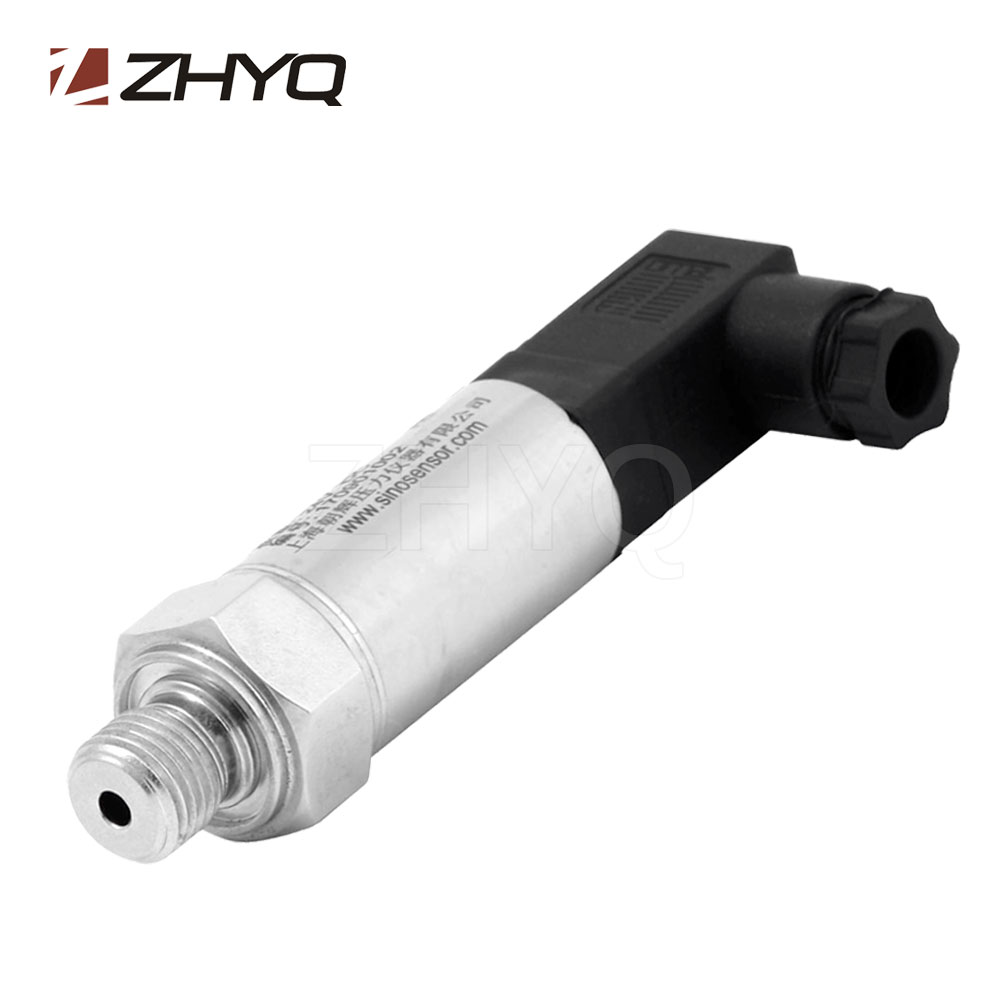

Ceramic pressure transmitter

Model:PT124B-213

Description:

PT124B-213 series small volume pressure transmitter adopts ceramic sensor chip, compact construct design makes this series suitable for the occasion where installation space is restricted. Widely pressure range and temperature compensation, free of calibration. And we can supply OEM produces, for the special design, this series product is widely used in the domestic and abroad market.

Send inquiry Download PDF

Tags: Ceramic pressure transmitter, Cost-effective pressure transmitter, 4-20mA pressure transmitter

  • Various industrial standard signal output
  • Various electrical connector available
  • Certain stock for shortening delivery time
  • High accuracy, free of calibration
  • different dimension design
  • Mechanical Engineering Industry
  • Industrial test and control
  • Pump and compressors
  • HVAC
Pressure range 0~5bar~50bar
Over load 150%FS
Burst pressure 300%FS
Output 4-20mA, 1-5V/0-5V, 0-10V
Power supply 12~36VDC
Response time <5ms
Combine error 0.5% FSO (Including Linearity, Repeatability & Hysteresis)
Repeatability ≤ +/- 0.2%FSO
Long term stability ≤ +/-0.2%FS/year
Pressure connection M20×1.5,G1/2,G1/4,1/2NPT ( customer tailor )
Operating temperature -20 ℃ ~ 80 ℃
Temperature compensation 0℃ ~ 60℃
Electrical connector Bendix connector,Hirschman DIN4365 and Gland lead
