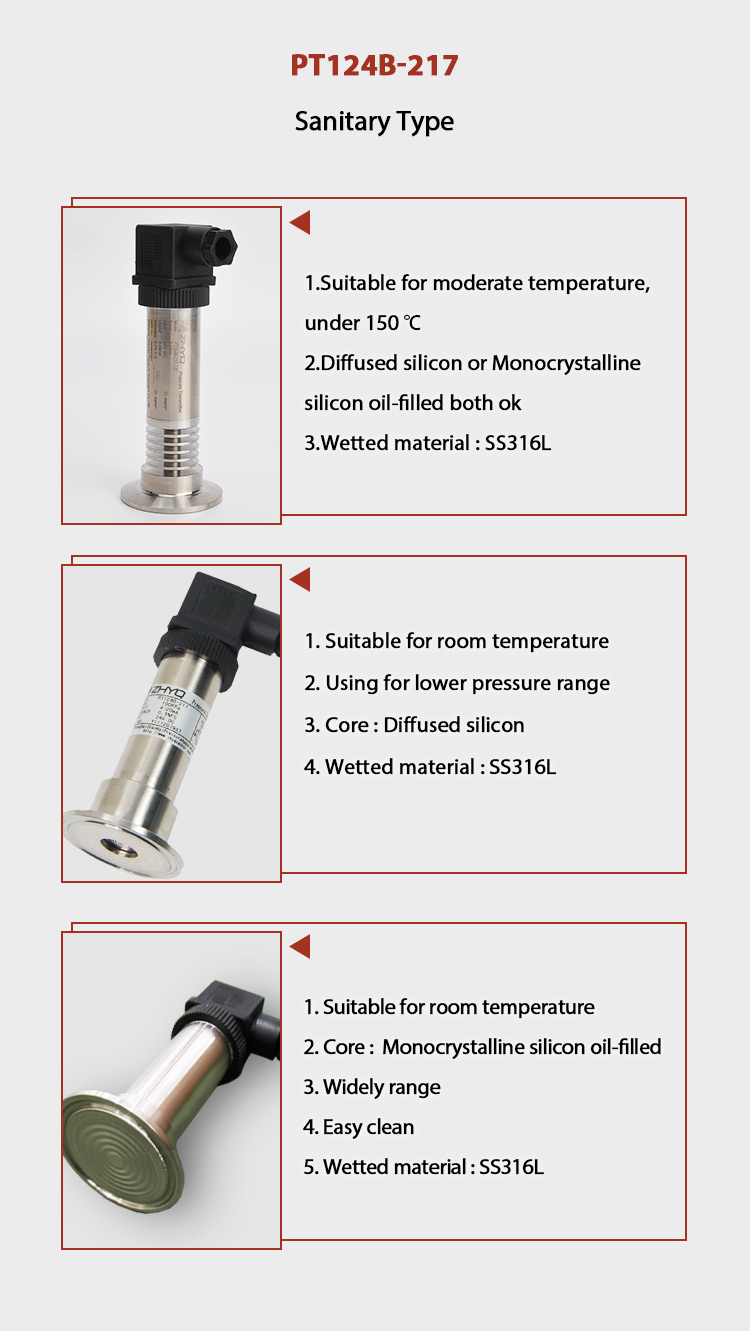

Clamp mounting pressure transmitter

Model:PT124B-217

Description:

PT124B-217 Series clamp pressure transmitter, it adopts firm material with special treatment, it is suitable for the low pressure measurement occasion. This product design with compact construct, corrosive-resistant, shock-resistant, it solves the problems during the measurement that the pressure port is easily blocked, it can be interchangeable with the similar world standard products.

Send inquiry Download PDF

Tags: Clamp mounting pressure sensor, Clamp mounting pressure transmitter, Flush diaphragm pressure transmitter

  • Pressure Range:-1…0…100bar
  • Various signal output for industrial standard
  • Wide pressure range
  • High accuracy, high stability
  • compact dimension design with high-standard quality
  • This item suitable for polyurethane device, papermaking, paint, medical pharmacy, food & Beverage.
Pressure range -1~0~1bar; 0~10KPa~100MPa
Over load 150%FS
Burst pressure 300%FS
Output 4-20mA, 1-5V/0-5V, 0-10V
Power supply 12~36VDC
Response time <5ms
Combine error 0.25%FS; 0.5% FSO (Including Linearity, Repeatability & Hysteresis)
Repeatability ≤ +/- 0.2%FSO
Long term stability ≤ +/-0.2%FS/year
Pressure connection 1.0 ″ , 1.5 ″
Operating temperature -20 ℃ ~ 80 ℃
Temperature compensation 0℃ ~ 60℃

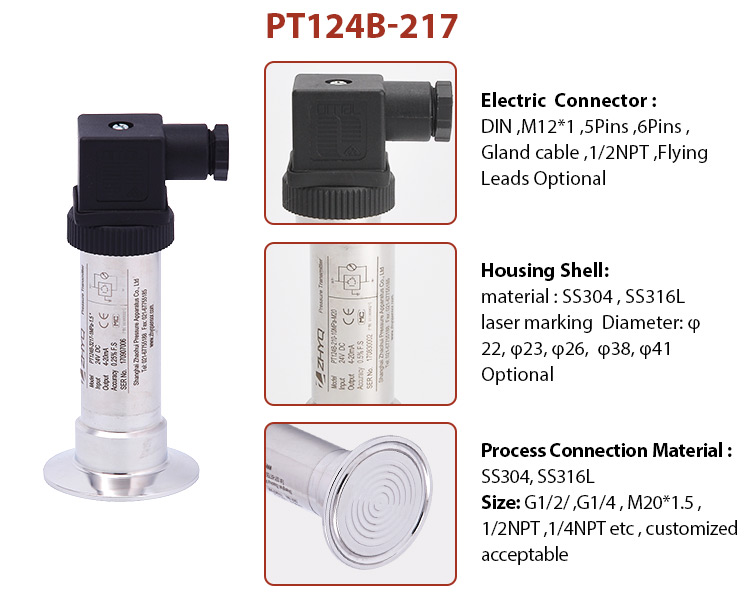

Electrical connector Bendix connector,Hirschman DIN4365 and Gland lead
