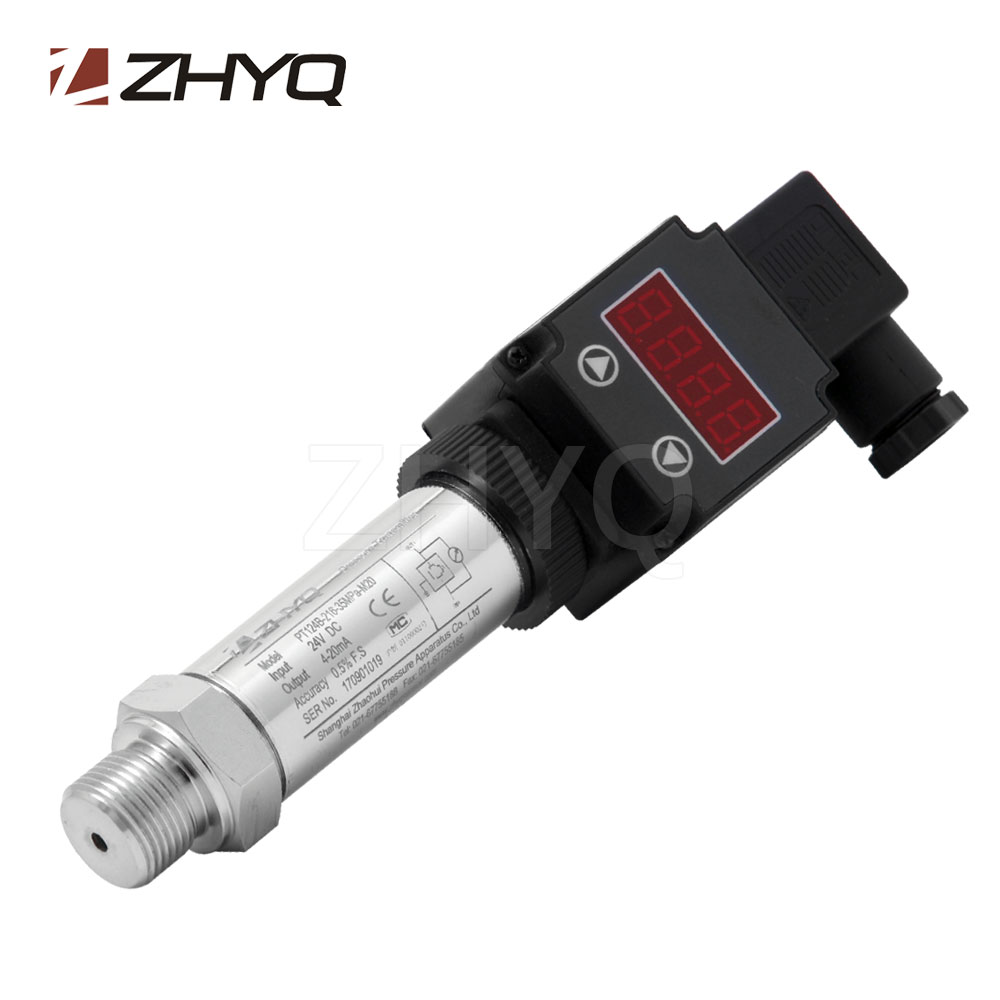

LED local display pressure transmitter

Model:PT124B-216

Description:

PT124B-216 Series LED display pressure transmitter, it adds a LED indicator base on the model PT124B-210, it can read value locally, easy for use. This series products with widely pressure range, high performance, and design with general type, it can be interchangeable with the similar world standard products.

Send inquiry Download PDF

Tags: LED local display pressure transmitter, 4-20mA pressure transmitter, digital pressure transmitter

  • Widely pressure aange:-1~0~2000bar

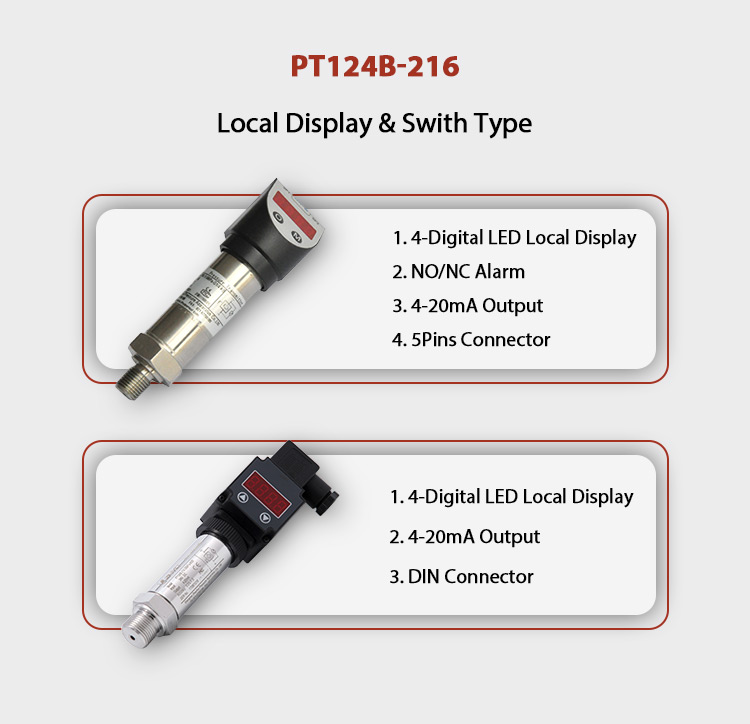

  • LED local display
  • High accuracy, stable capability, little temp-draft
  • overload resistance ,high impact resistance, excellent linearity
  • Lasting high stability
  • Wide temperature range, corrosion proof
  • This product suitable for hydraulic pressure, auto-controlling house, constant pressure water supply, loading machine, liquid pressure measuring and controlling in automatization fields and with local display .
Pressure range -1~0~1bar; 0~1bar~2000bar
Over load 150%FS
Burst pressure 300%FS
Output 4-20mA
Power supply 12~36VDC
Response time <5ms
Combine error 0.5% FSO; 0.25%FS (Including Linearity, Repeatability & Hysteresis)
Repeatability ≤ +/- 0.2%FSO
Long term stability ≤ +/-0.2%FS/year

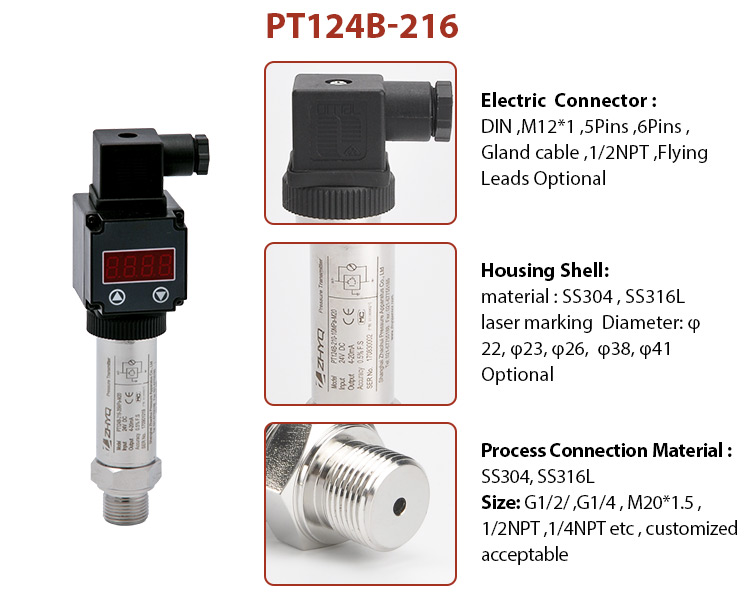

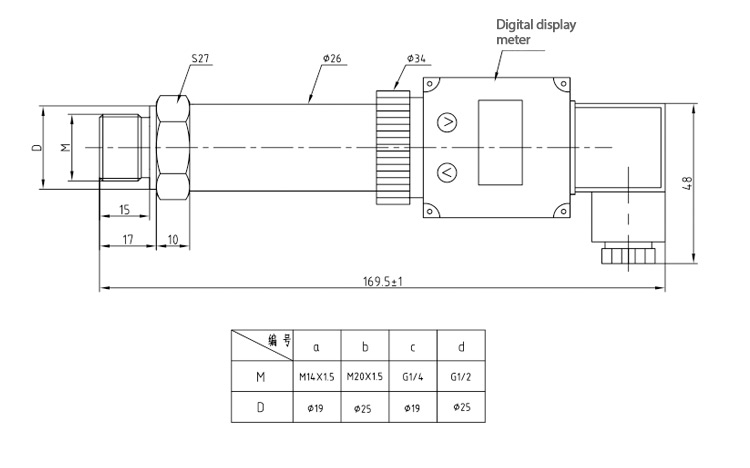

Pressure connection M20×1.5,G1/2,G1/4,1/2NPT ( customer tailor )
Operating temperature -20 ℃ ~ 80 ℃
Temperature compensation 0℃ ~ 60℃

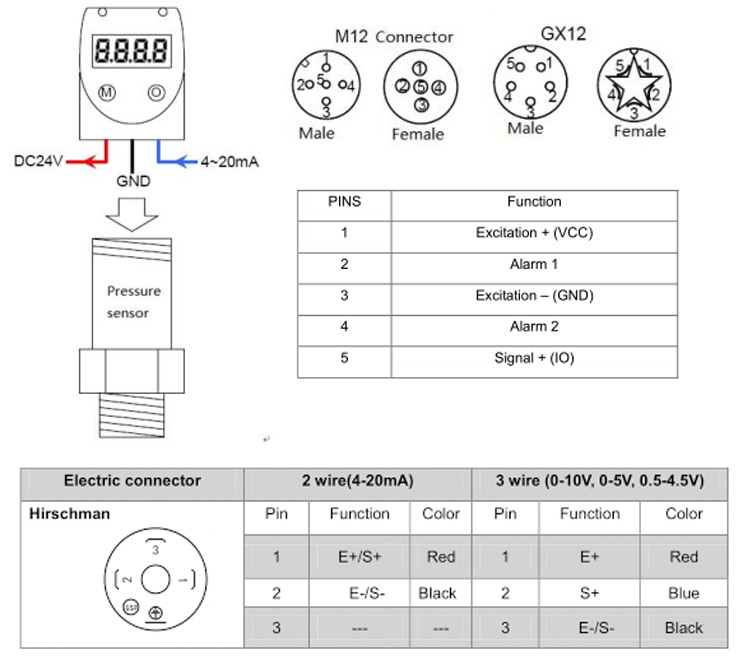

Electrical connector Hirschman DIN43650
