PT124Y-616
PT124Y-616

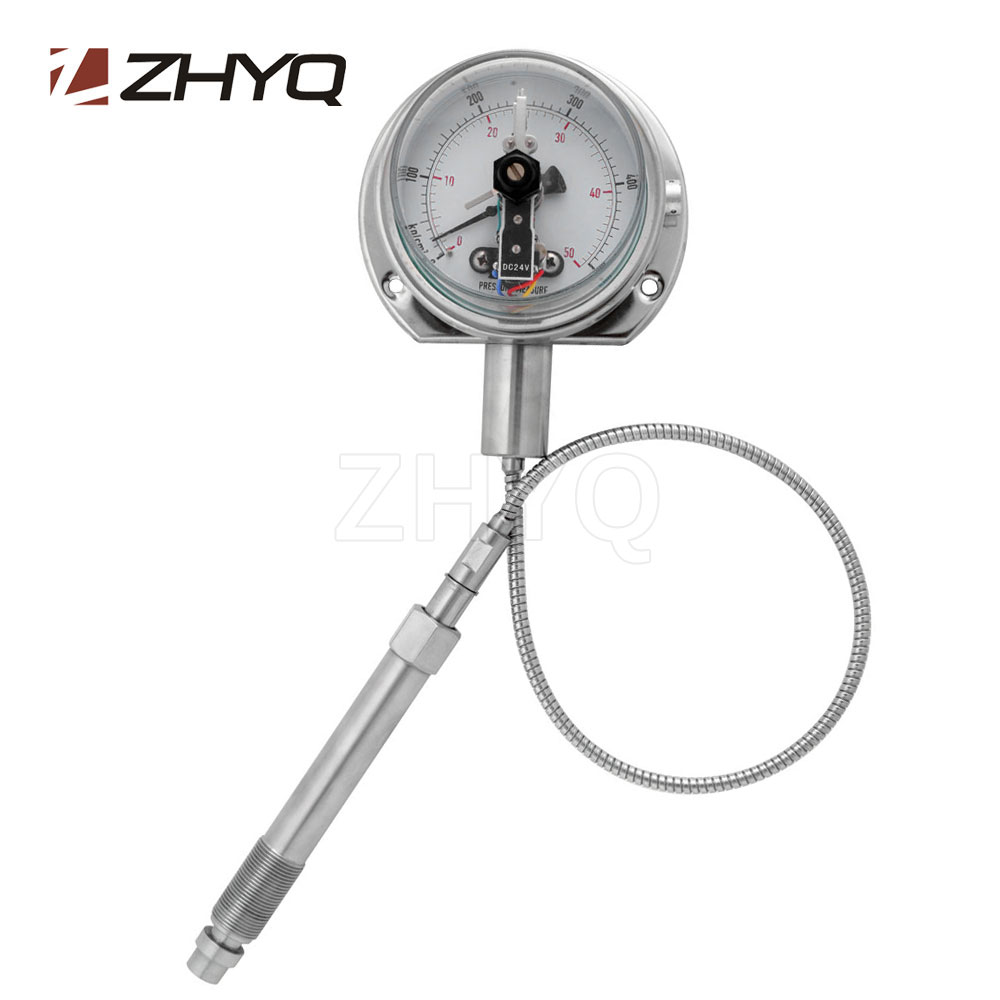

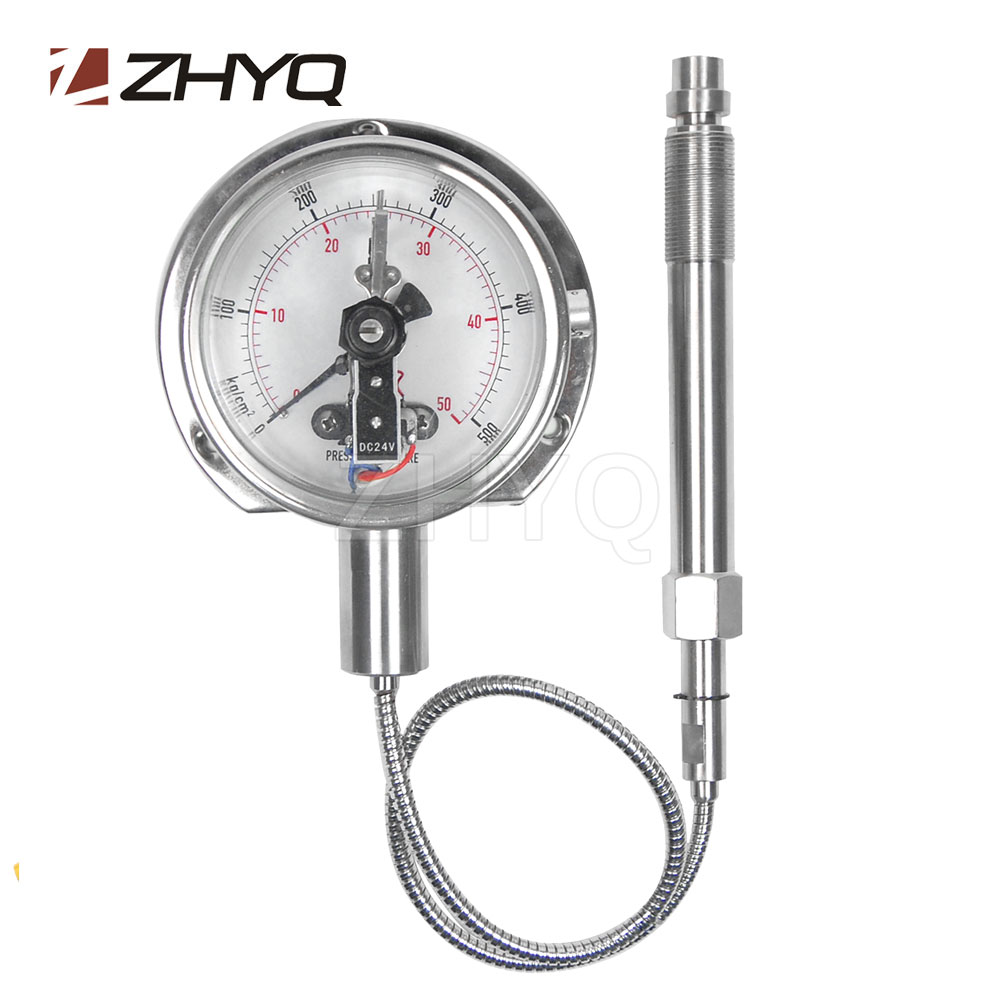

Electric contact melt pressure gauge

Model:PT124Y-616

Description:

PT124Y-616 adopts the original packaging machine stamen with signal and electric contact output, and designed with all stainless steel structure, isolated diaphragm and local index display. With dial plate’s stem-up and stem-down versions, the gauge head can be rotated 360°for unobstructed viewing.

Send inquiry Download PDF

Tags: melt pressure gauge

  • Direct, local reading
  • Stem-up and stem-down version
  • Install easily, high reliability
  • Zero adjustment
  • Alarm relay
  • Chemical fibre and filature
  • Rubber & plastic machinery
  • The equipment of high temperature steam
Range 0….10MPa to 0….150MPa
Output Contact switch signal
Accuracy ±1.6%FS
Input Voltage 24VDC (12~36)VDC; 200VAC  ;380VAC
Configuration Bourdon tube
Over Pressure 1.5×FS
Max Diaphragm Temperature 350℃
Dial Diameter 100mm
Flexible Length 0.5…5M
Electric connector Direct cable
Process connector M22*1.5 , G3/4(customer tailor)
Electric connector 5 pins , DIN , gland leading
Wiring diaphragm Red / yellow for NO ; Red/blue for NC
