PT124Y-612-melt pressure gauge
PT124Y-612-melt pressure gauge

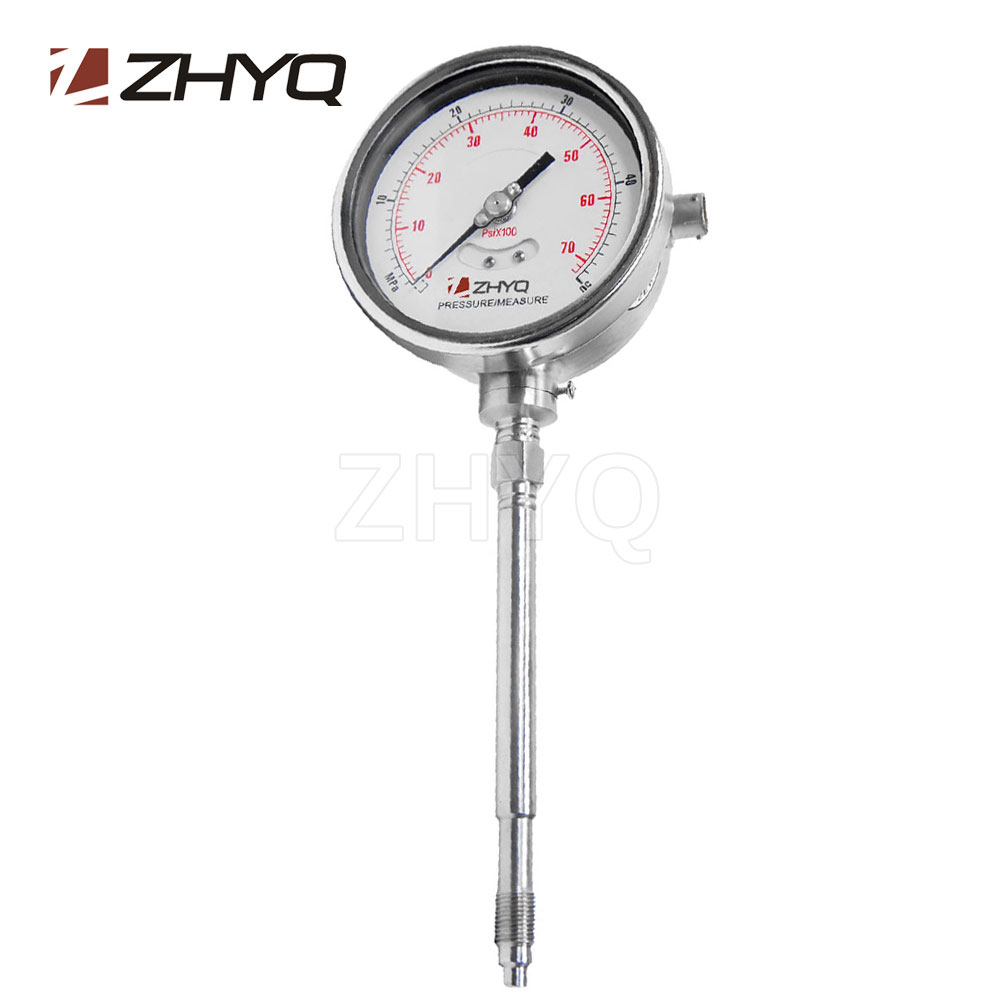

Flexible stem melt pressure gauge

Model:PT124Y-612

Description:

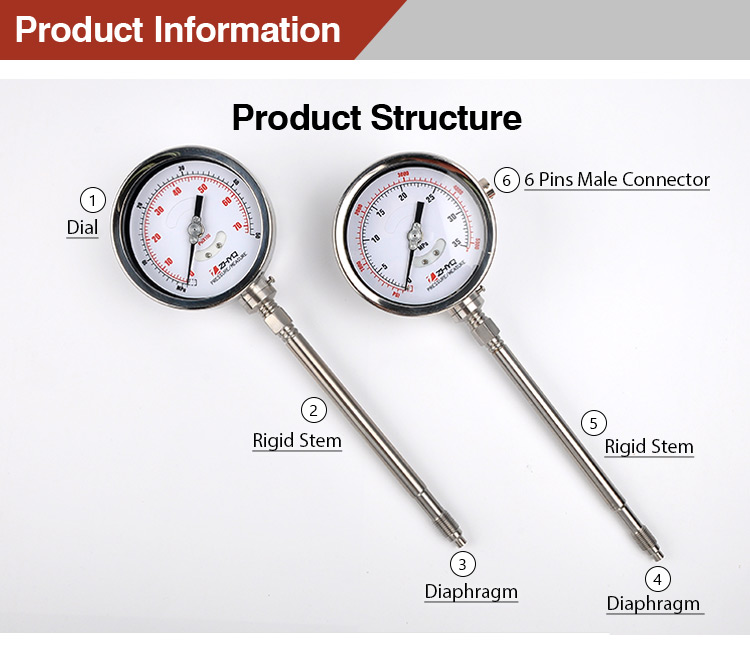

The melt pressure gauge designed with all stainless steel structure, isolated diaphragm and local index display. With dial plate’s step-up and stem-down versions.

Send inquiry Download PDF

Tags: Melt pressure gauge,Transmitter output melt pressure gauge,Melt pressure gauge for fiber machine

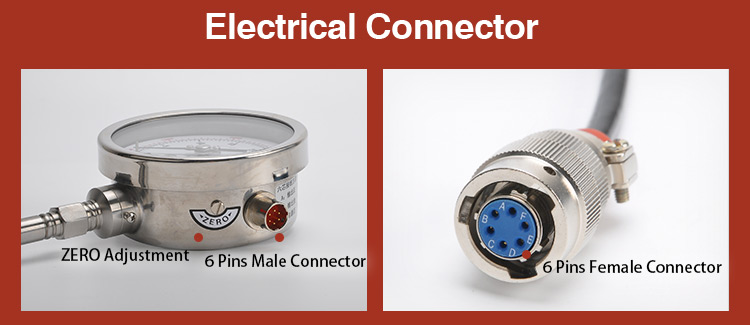

  • With signal output
  • Stainless steel sealing
  • Install easily
  • Zero adjustment
  • High reliability and good repeatability
  • Chemical fiber and filature
  • Rubber & plastic machinery
  • The equipment of high temperature steam
  • High temp fluid pressure measuring and controlling
Range 0~16MPa~150MPa

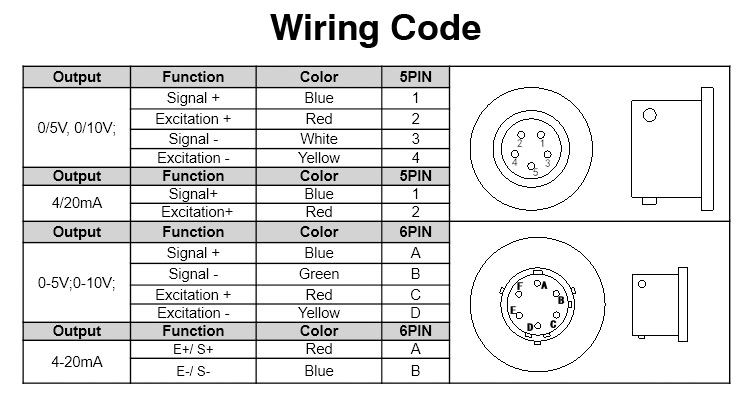

Output: 3.33mV/V,4-20mA

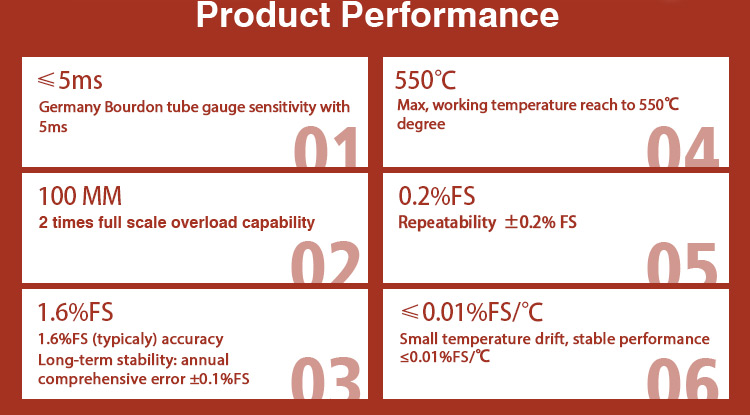

Accuracy ±1.6%FS
Configuration Bourdon tube
Over Pressure 1.5×FS
Dial Diameter 100mm
Needle sweep: 270º

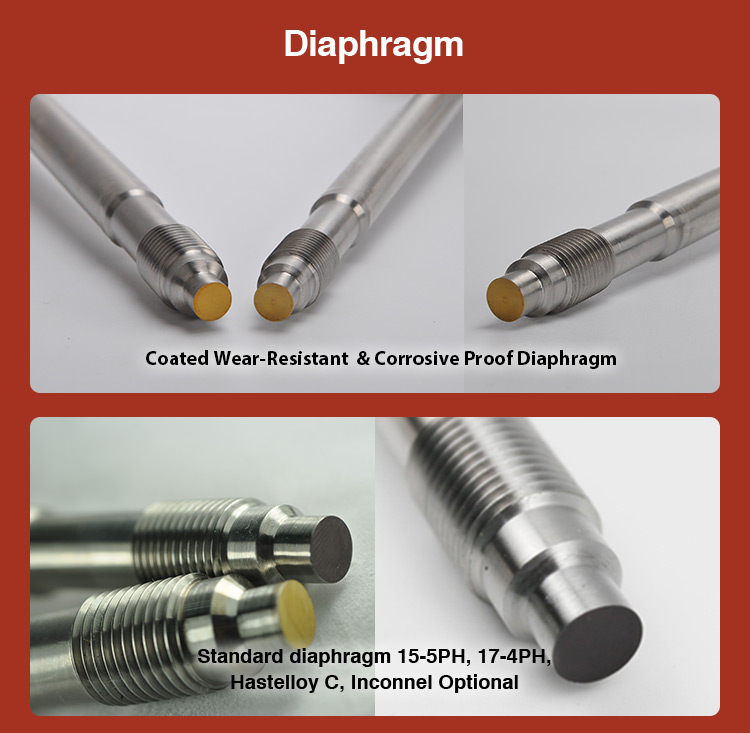

Diaphragm material: Stainless steel

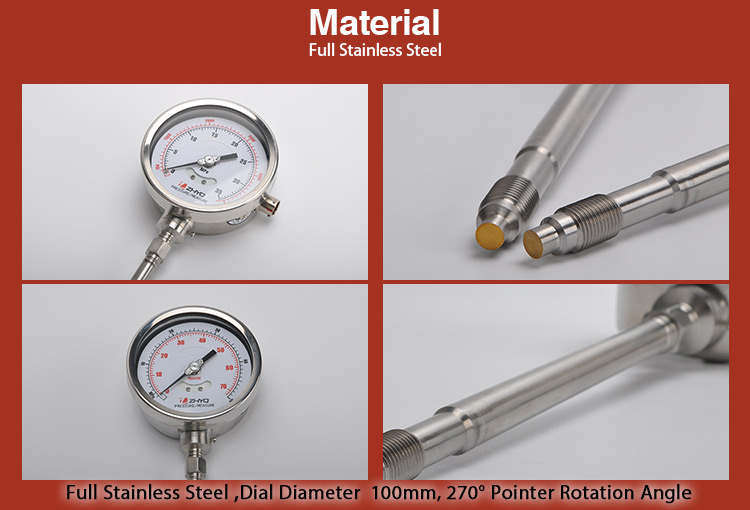

Case material: Stainless steel with safety glass
Max Diaphragm Temp. 350℃

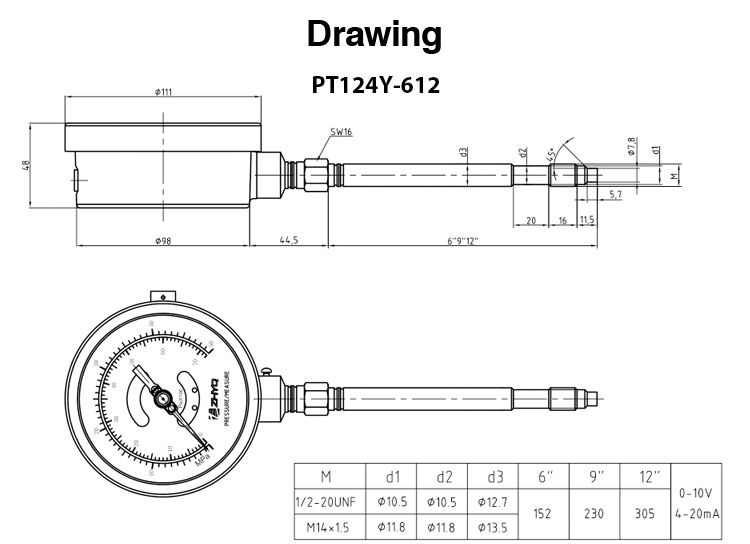

Process Connection 1/2-20UNF, M14*1.5, M22×1.5;M18×1.5(Optional)
