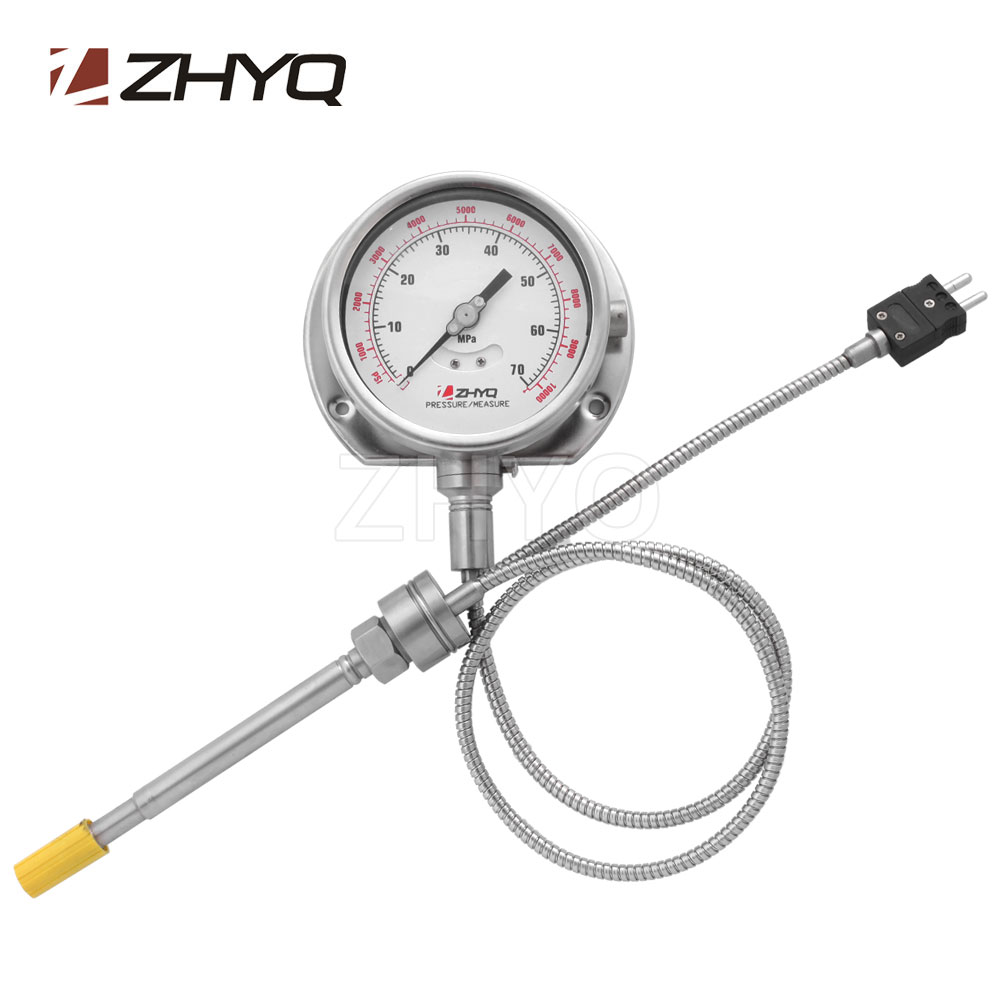

Flexible stem melt pressure gauge

Model:PT124Y-615

Description:

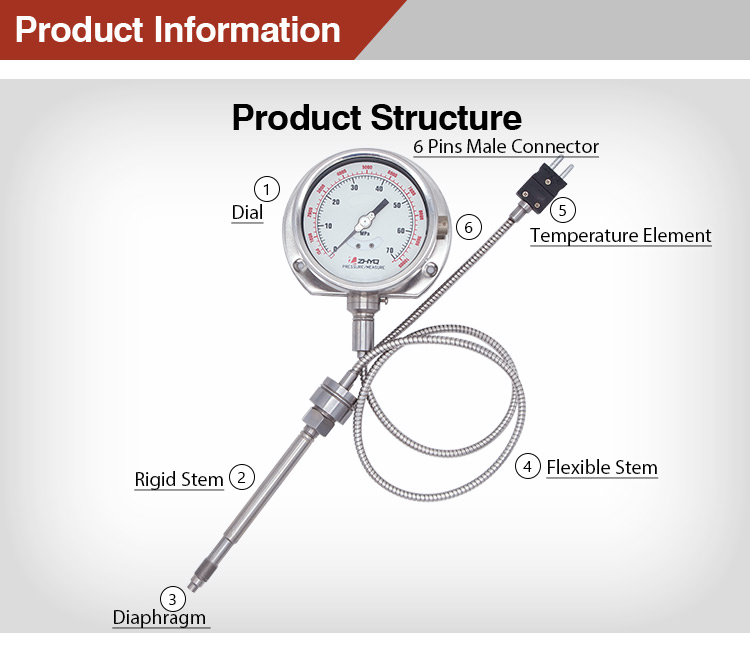

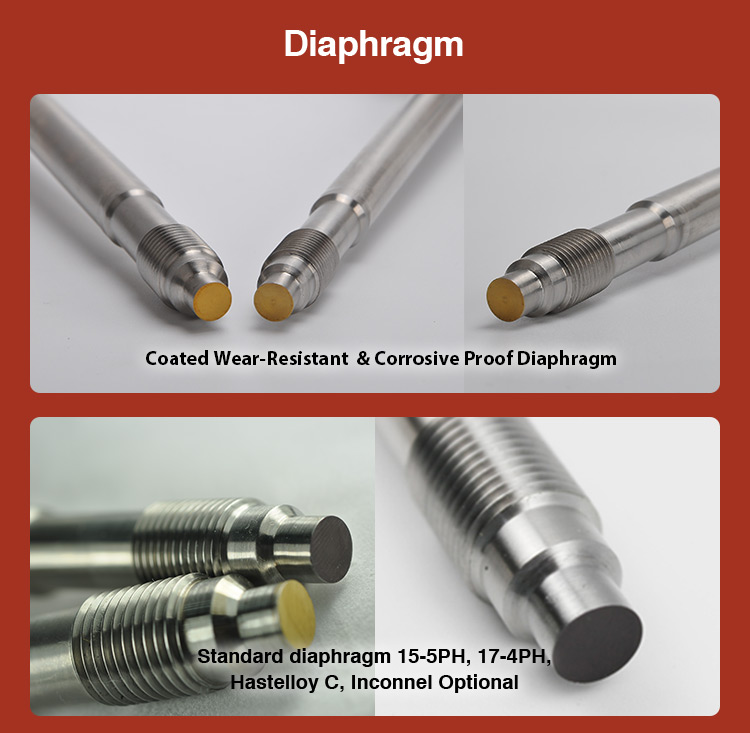

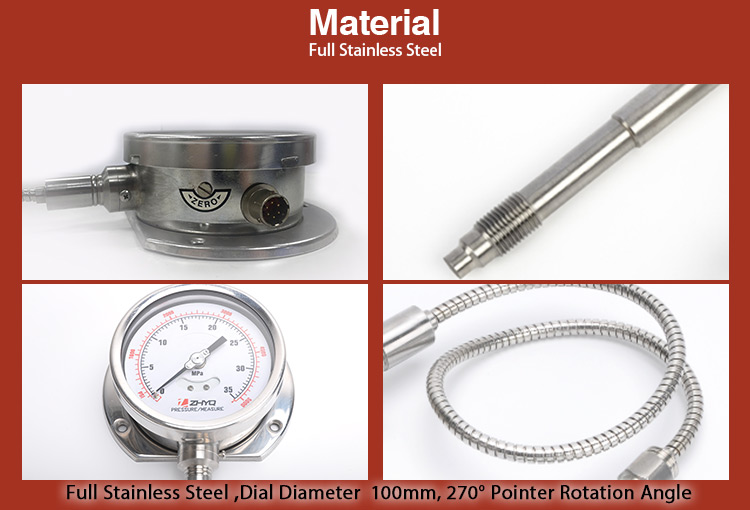

The series flexible stem melt pressure gauge adopts the original packaging machine stamen, and designed with all stainless steel structure, isolated diaphragm and local index display. PT124Y-615T equipped with thermocouple, it can measure the pressure and temperature at one point.

Send inquiry Download PDF

Tags: melt pressure gauge,Flexible stem melt pressure gauge,Flexible stem diaphragm pressure gauge

  • Direct, local reading
  • Customer defined pressure gauge
  • Install easily, high reliability
  • Zero adjustment
  • Chemical fiber and filature
  • Rubber & plastic machinery
  • The equipment of high temperature steam

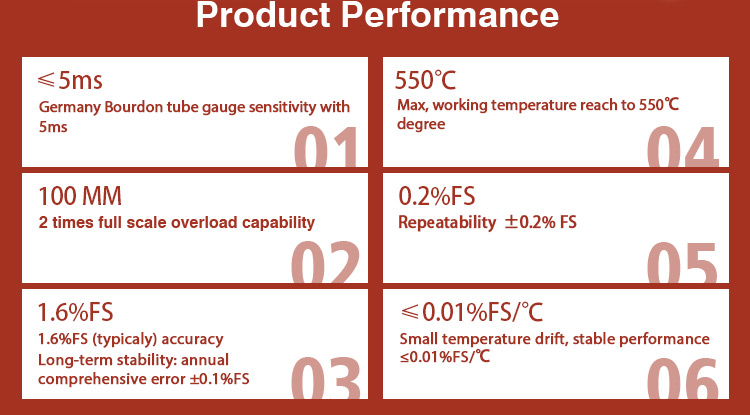

Range 0~16MPa~150MPa
Output 4-20mA; 3.33mV/V optional
Accuracy ±1.6%FS;
Input Voltage 24VDC (12~36)VDC; 10VDC
Configuration Bourdon tube
Over Pressure 1.5×FS
Dial Diameter 100mm
Flexible Length 0.5…5m

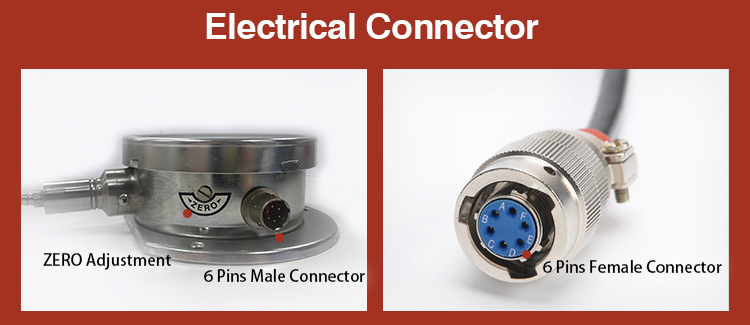

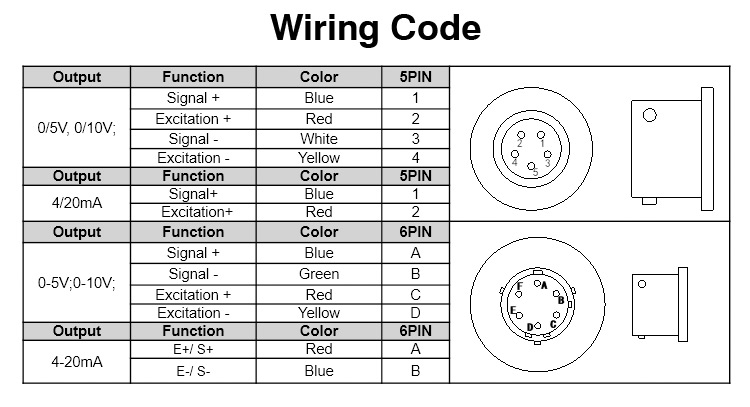

Electronic Connector 6PIN

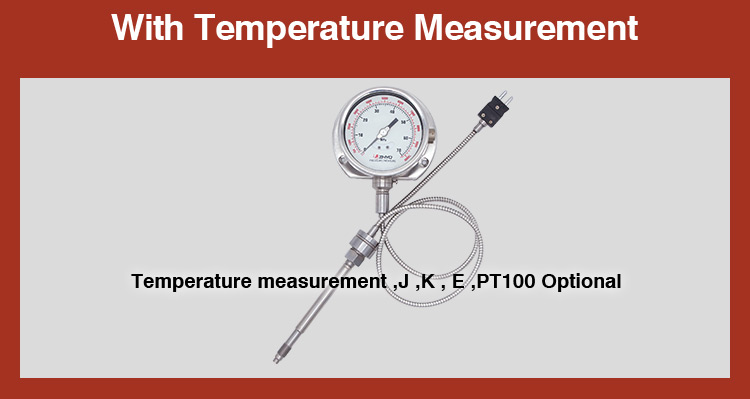

Temperature type J, K, E optional
Case mterial Stainless steel with safety glass
Max Diaphragm Temp. 350℃

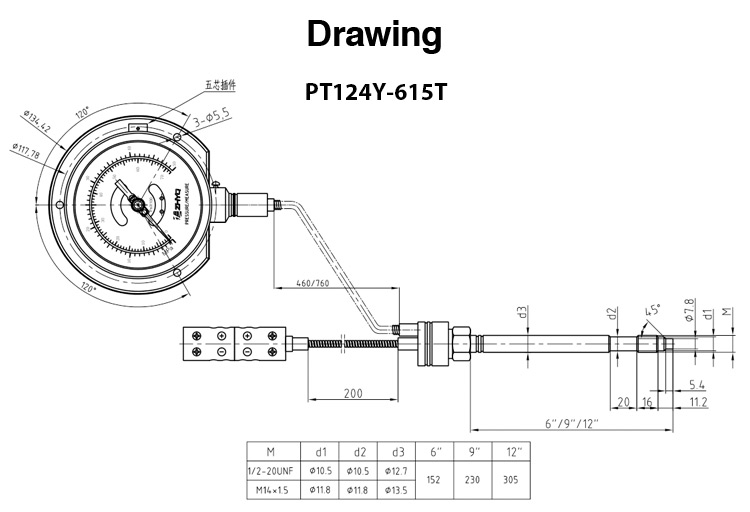

Process Connector 1/2″-20UNF, M14×1.5, M18×1.5(Optional)
