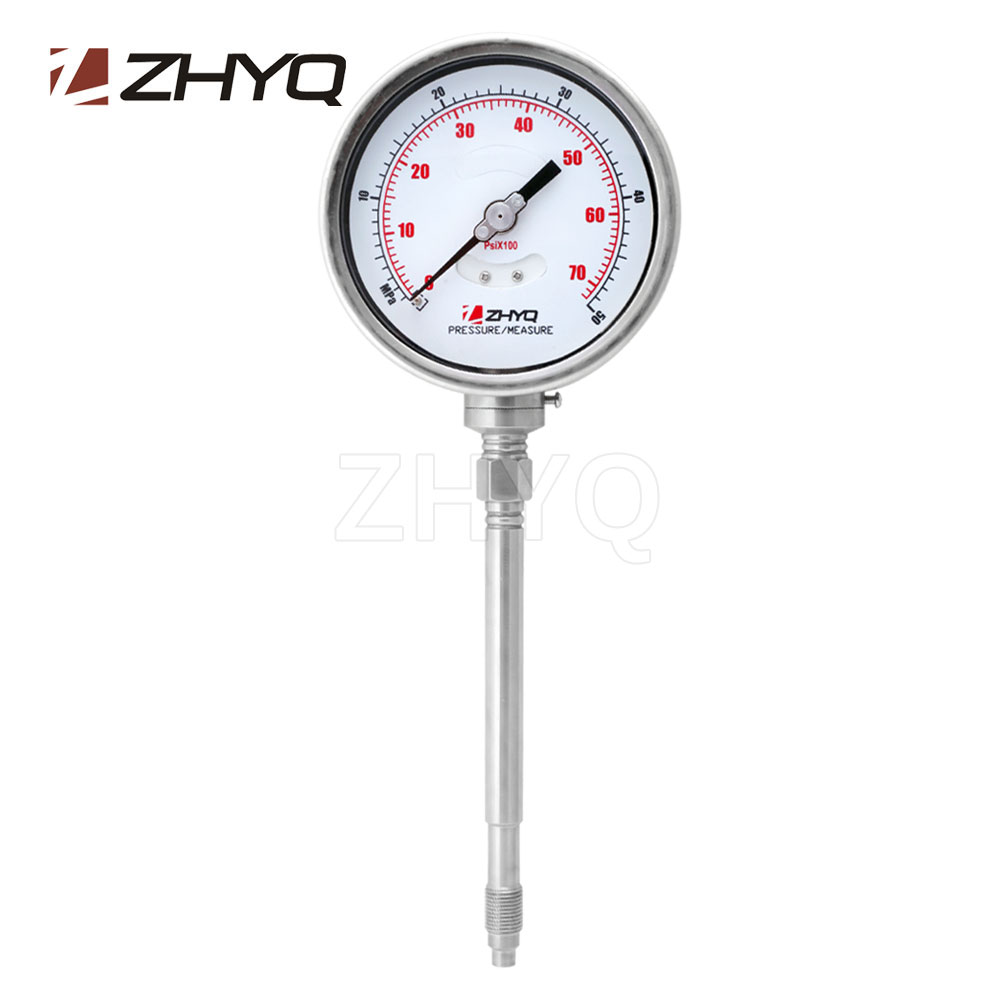

Rigid stem melt pressure gauge



The rigid rod melt pressure gauge, adopts the original German packaging machine stamen, dial plate’s step-up and stem-down versions, the gauge head can be rotated 360°for unobstructed viewing.

Send inquiry Download PDF
  • Direct, local reading
  • Mechanical design
  • Step-up and stem-down version
  • Install easily, high reliability
  • Zero adjustment

It is widely used in chemical fibre and filature, rubber & plastic machinery, high temperature steam, high temp fluid pressure measurement and control.

Range 0~16MPa~150MPa
Accuracy ±1.6%FS
Configuration Bourdon tube
Over Pressure 1.5×FS
Dial Diameter 100mm
Needle sweep: 270º
Diaphragm material: Stainless steel
Case material: Stainless steel with safety glass
Max Diaphragm Temp. 350℃
Process Connection 1/2-20UNF, M14*1.5, M22×1.5;M18×1.5,(Optional)
