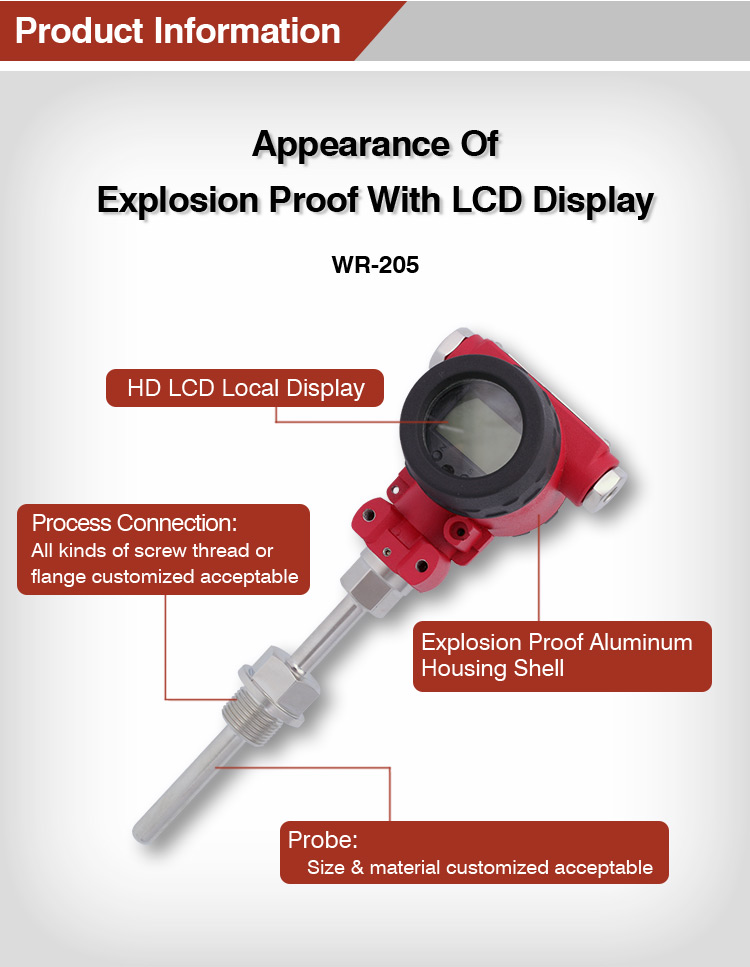

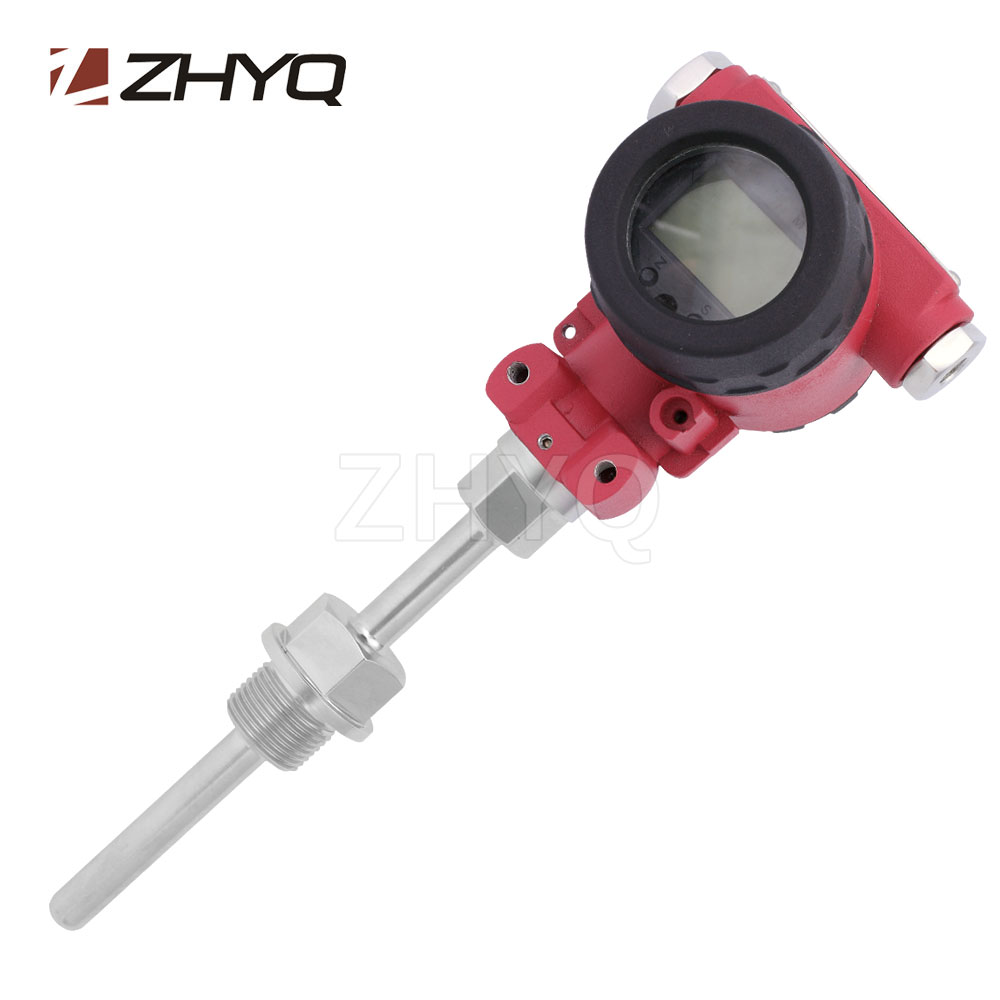

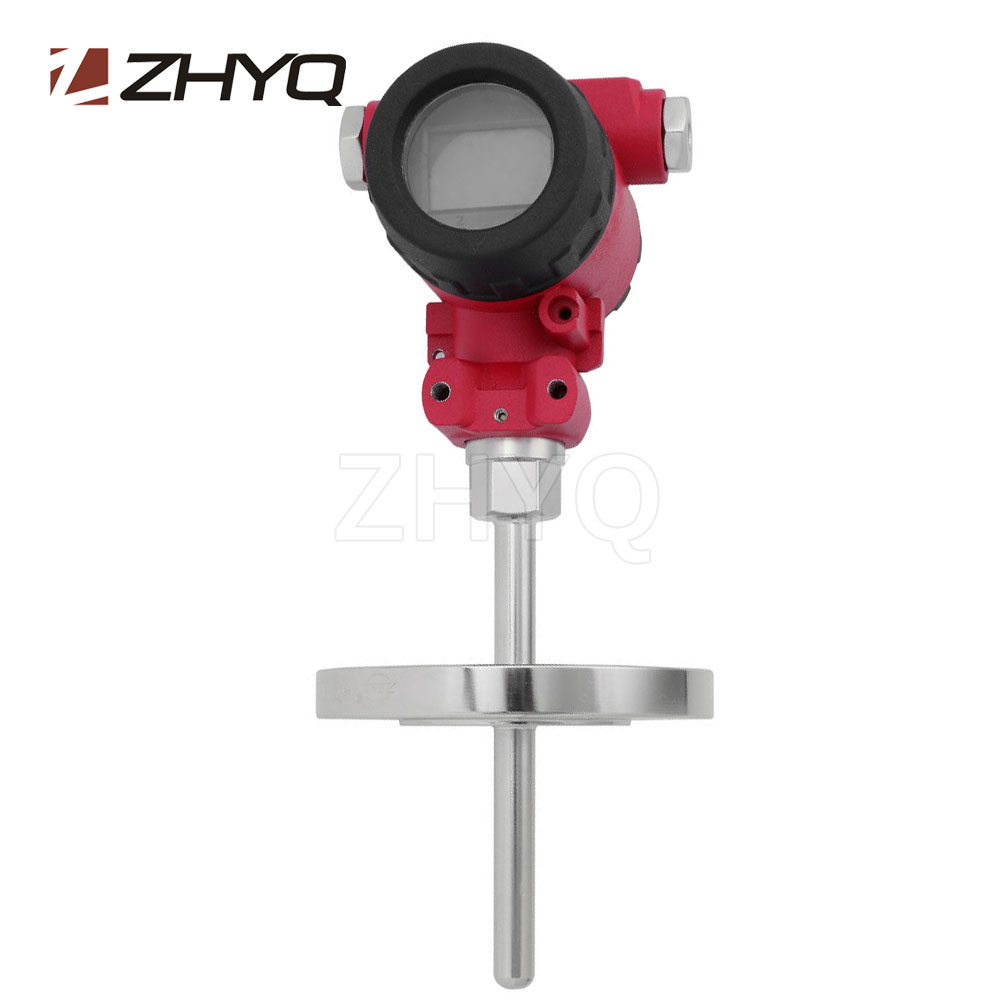

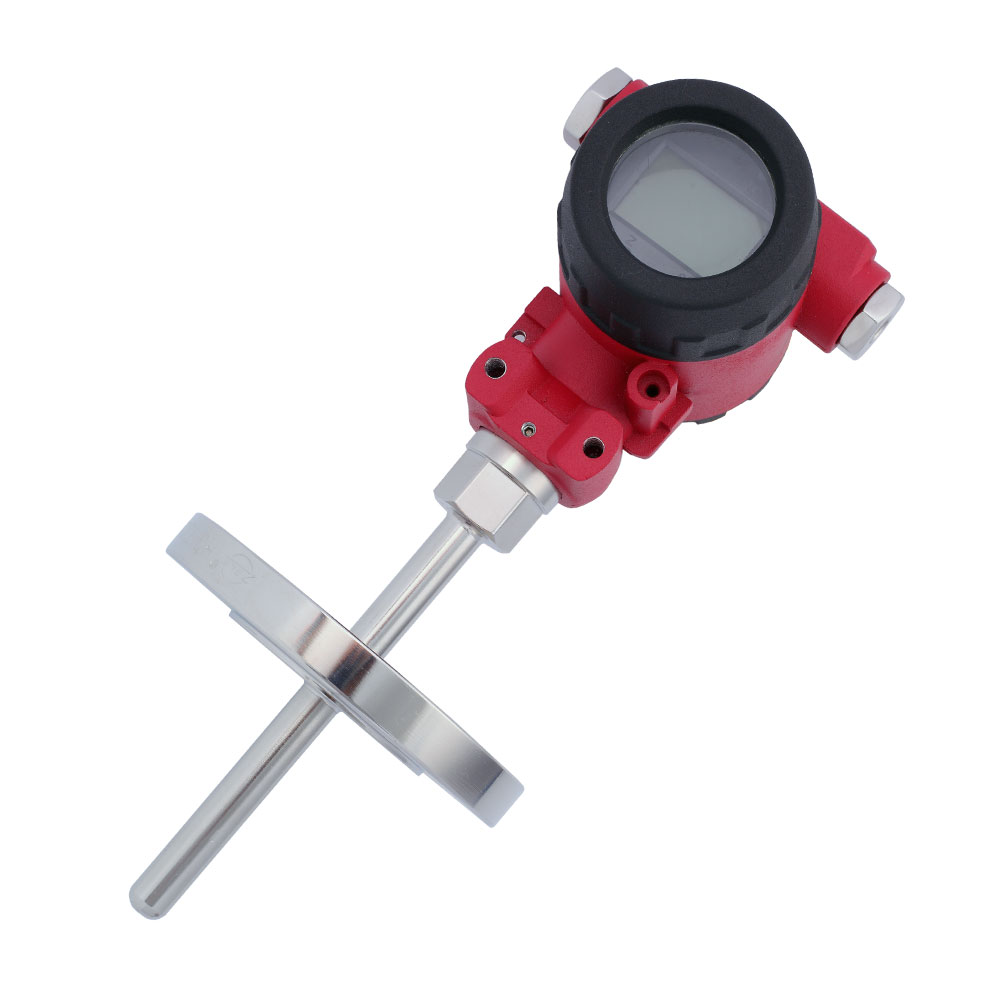

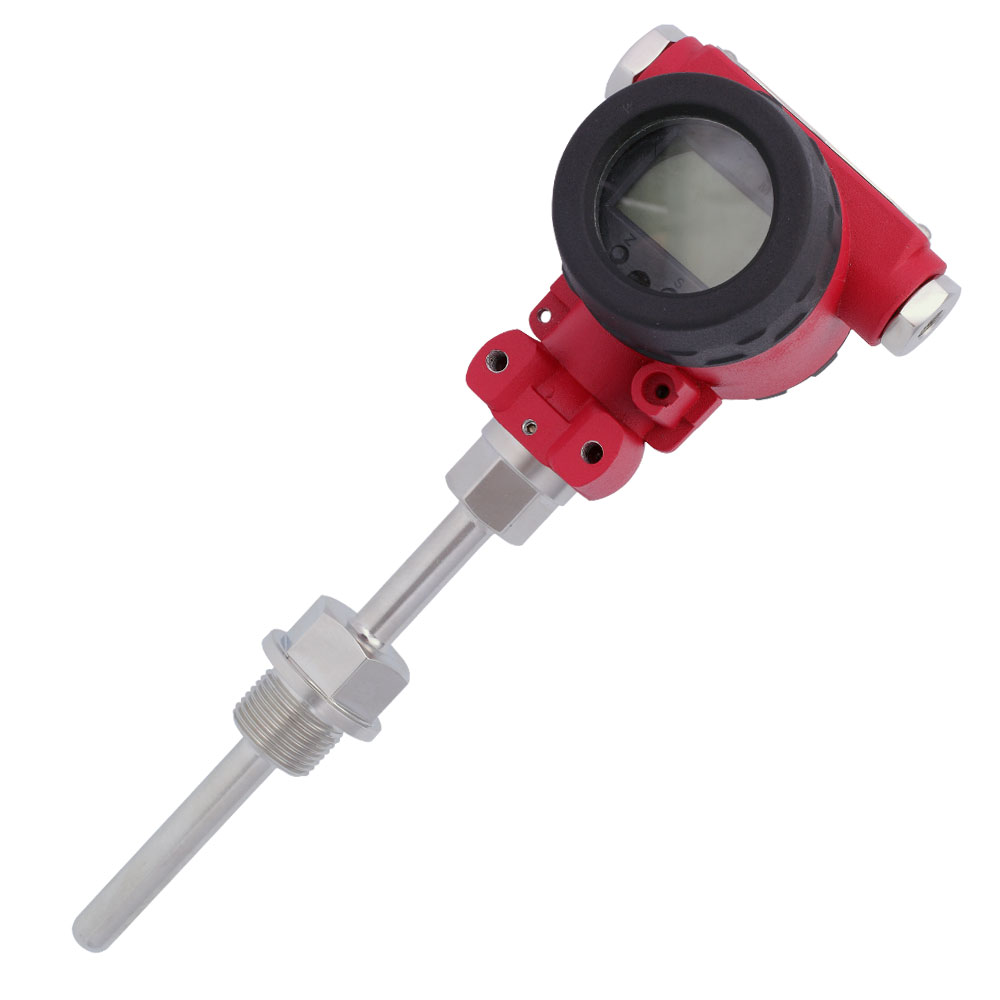

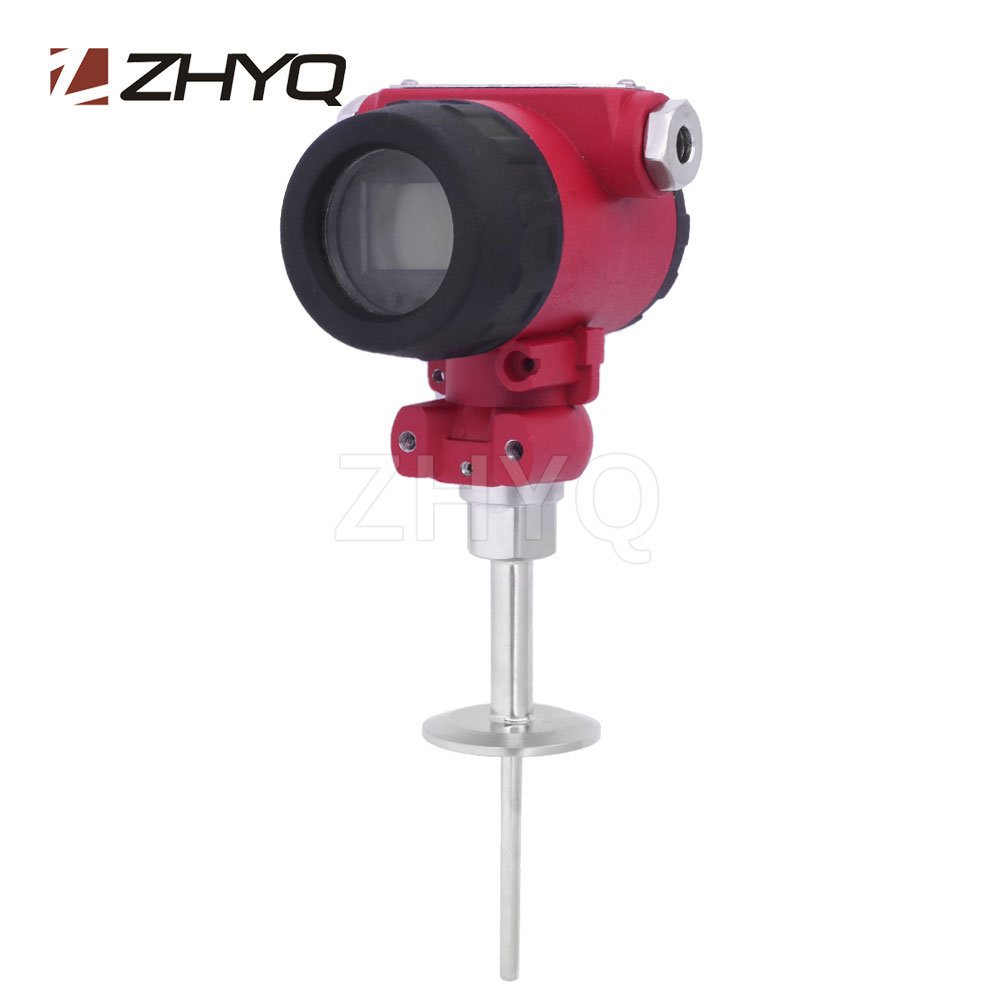

Intelligent integrated temperature transmitter

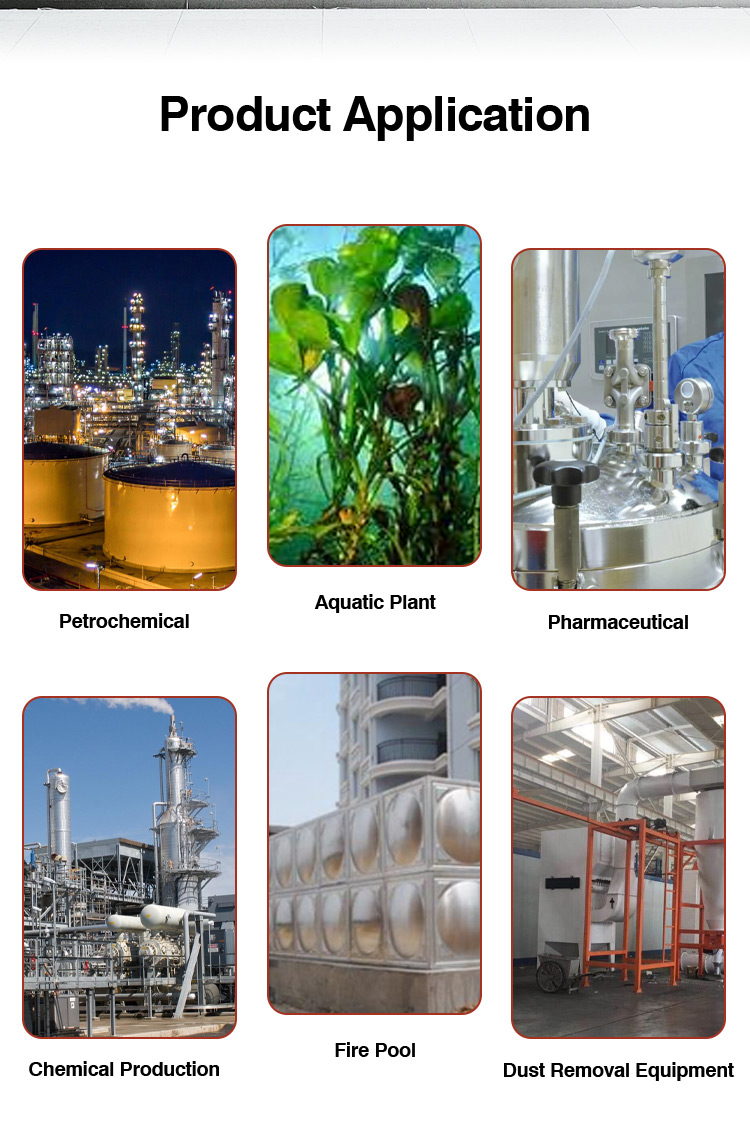

The integrated temperature transmitter designed with PT100, N, K, J and other temperature sensing components, it is widely used in chemical automatic control systems

Send inquiry Download PDF

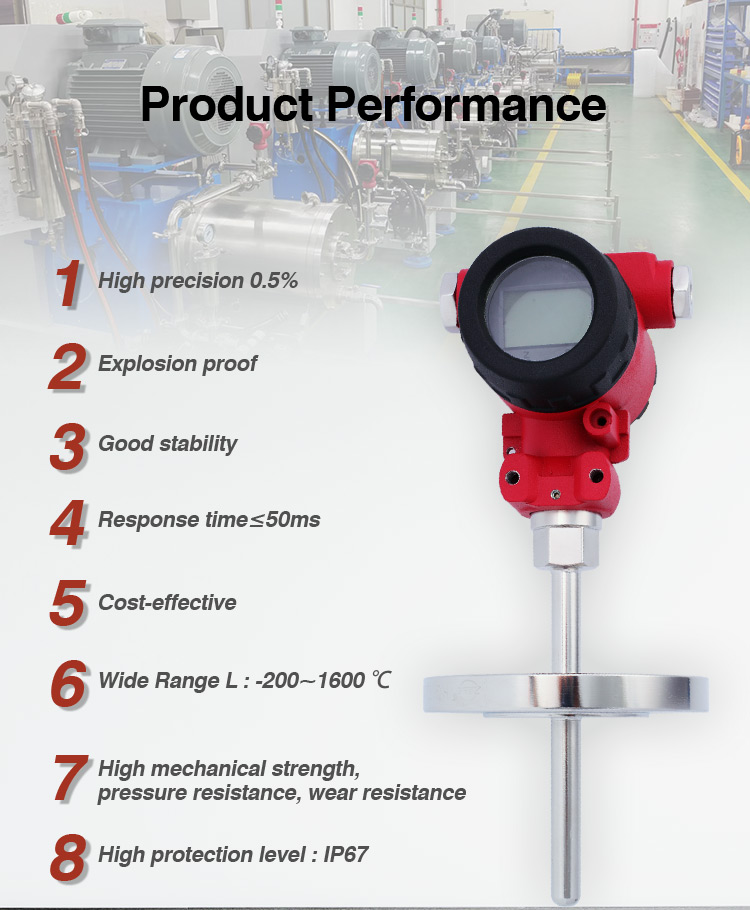

  • Easy assembly and easy replacement
  • Good shakeproof and high precision
  • Wide measuring range (-200 ° C ~ 1600 ° C)
  • Fast thermal response time and long service life
  • High mechanical strength and good pressure resistance
  • Suitable for explosion proof required area
  • In chemical plant, there are various flammable and explosive chemical gases around the production site. It’s unsafe and easy to cause environmental gas explosion if use common thermocouples, it needs to use flameproof thermocouple as temperature measurement instrument in these cases.

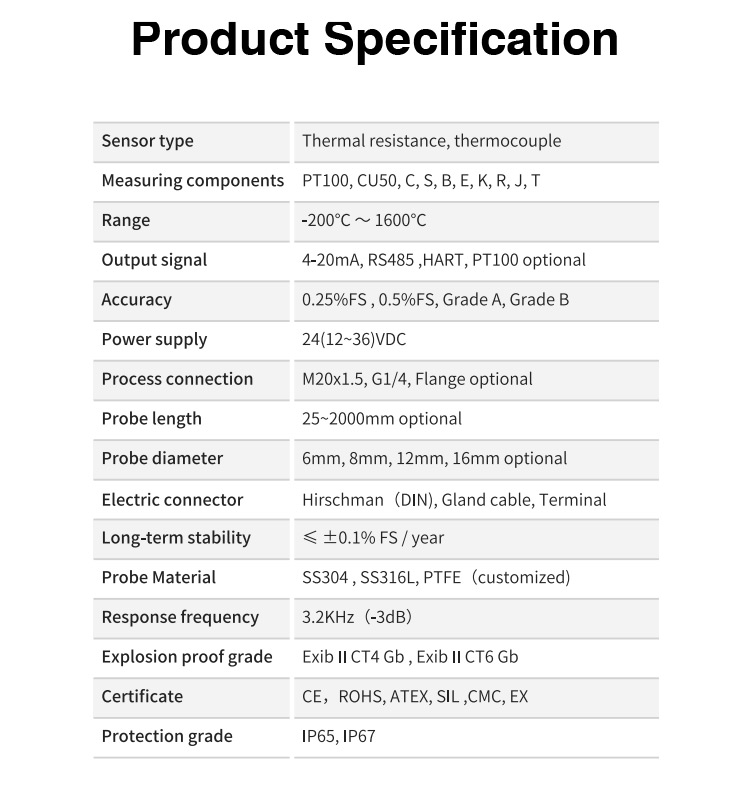

Temperature Sensing element: N,R,K,E,J,T,PT100,CU50
Temperature range: -200℃~0℃~1600℃
Output: mV/V , 4-20mA, HART optional

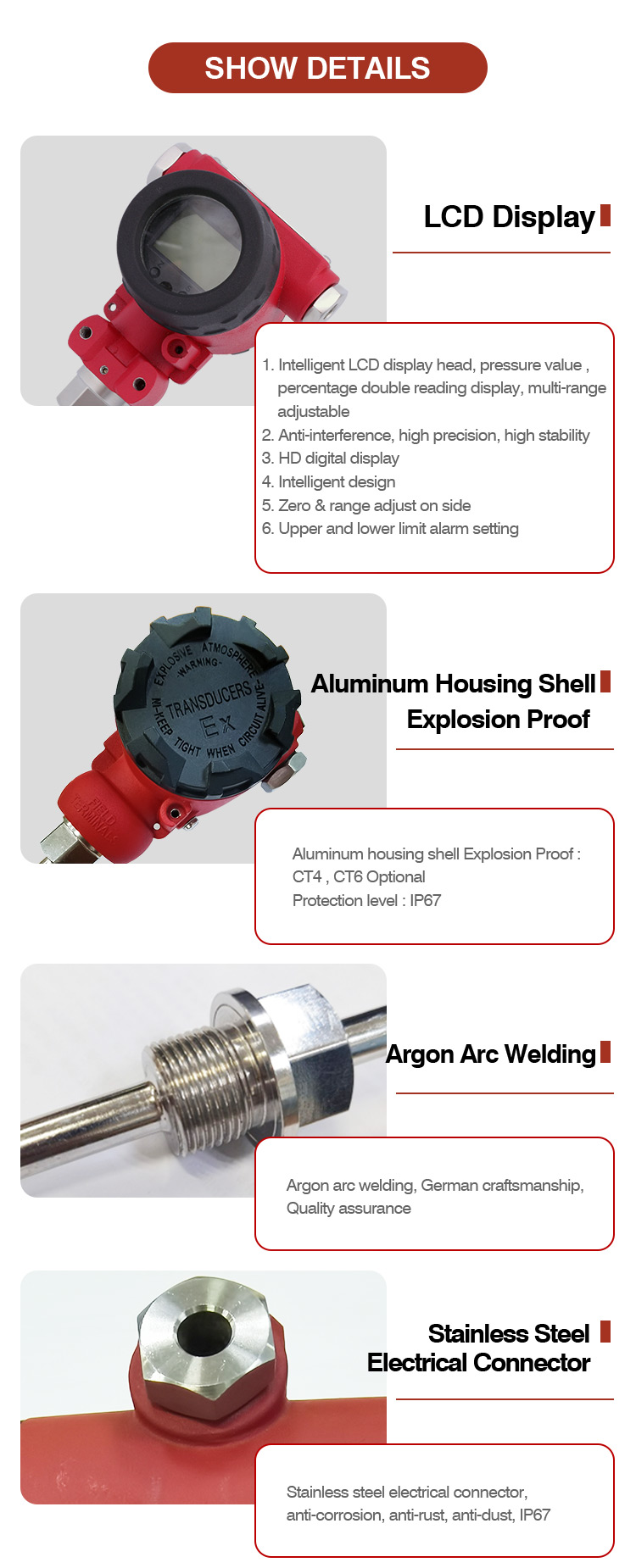

Local display: LCD optional
Power supply: 10VDC (mV/V) , 24VDC (4-20mA /HART)
Accuracy class: Class A: +/- (0.15+0.2%t); Class B: +/- (0.3+0.5%t)

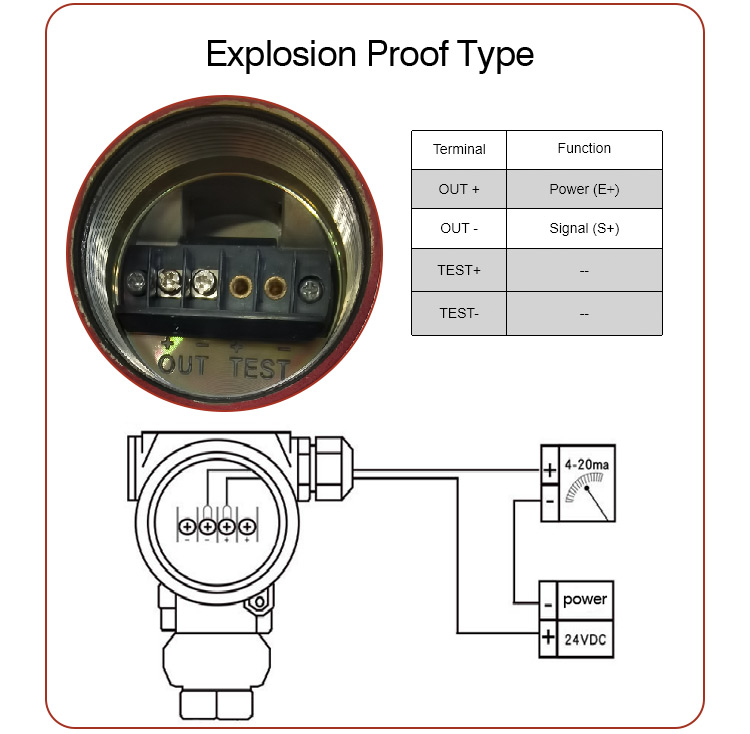

Electrical connector: waterproof, explosion-proof

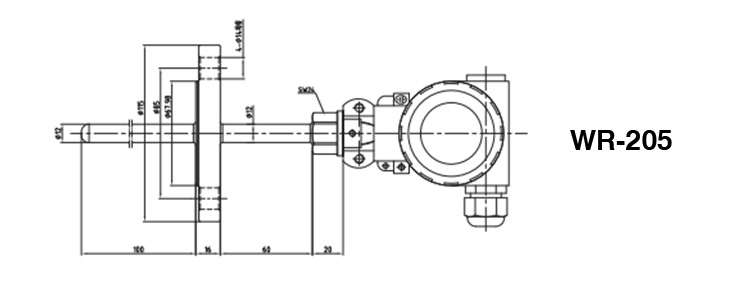

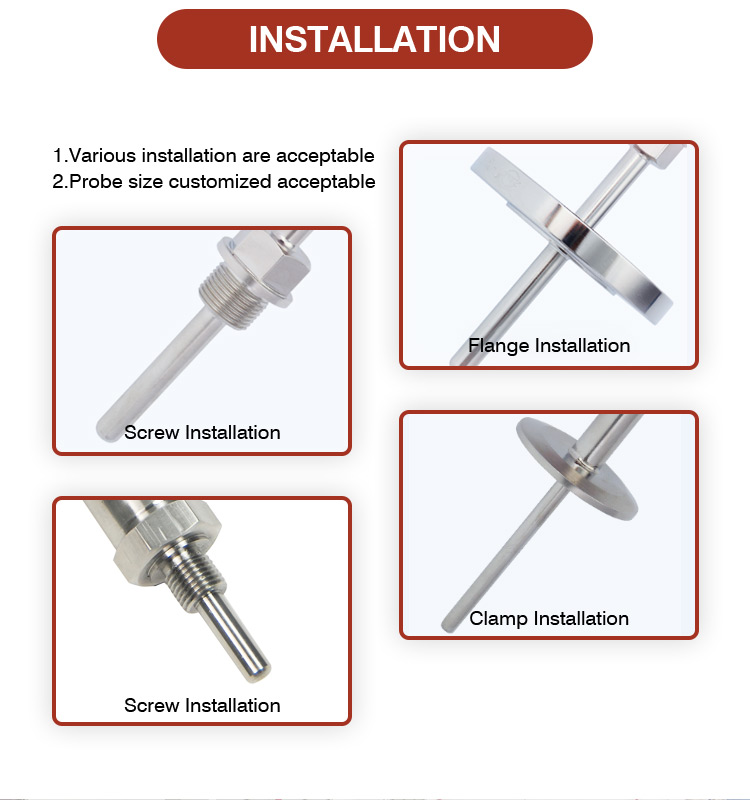

Process connection: M20*1.5, G1/2 , G1/4 ,flange, customized
Insert tube diameter (D): 6mm ,8mm ,12mm ,customized
Insert tube length (L): 8mm<L<800mm

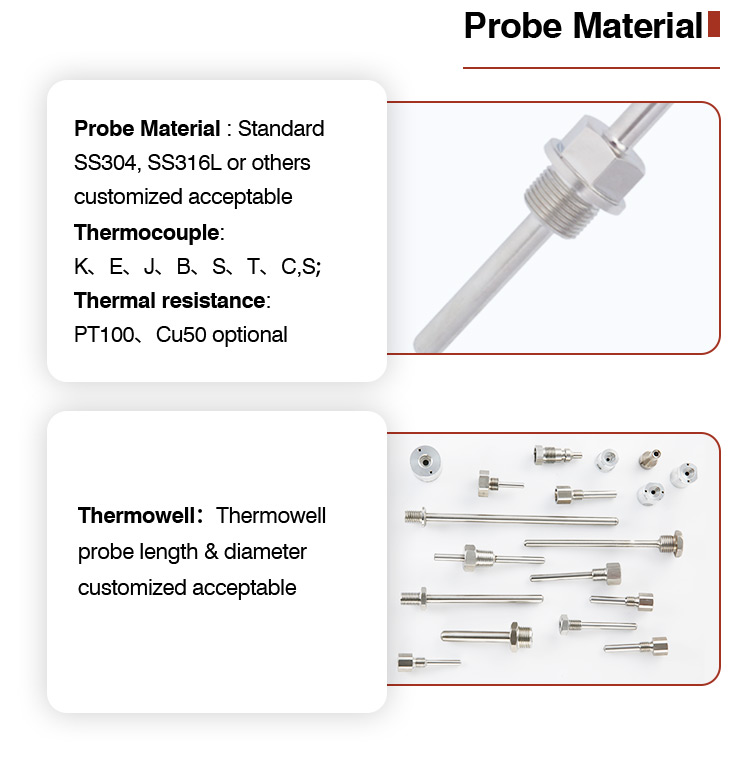

Insert tube material SS304 ,SS316L optional
