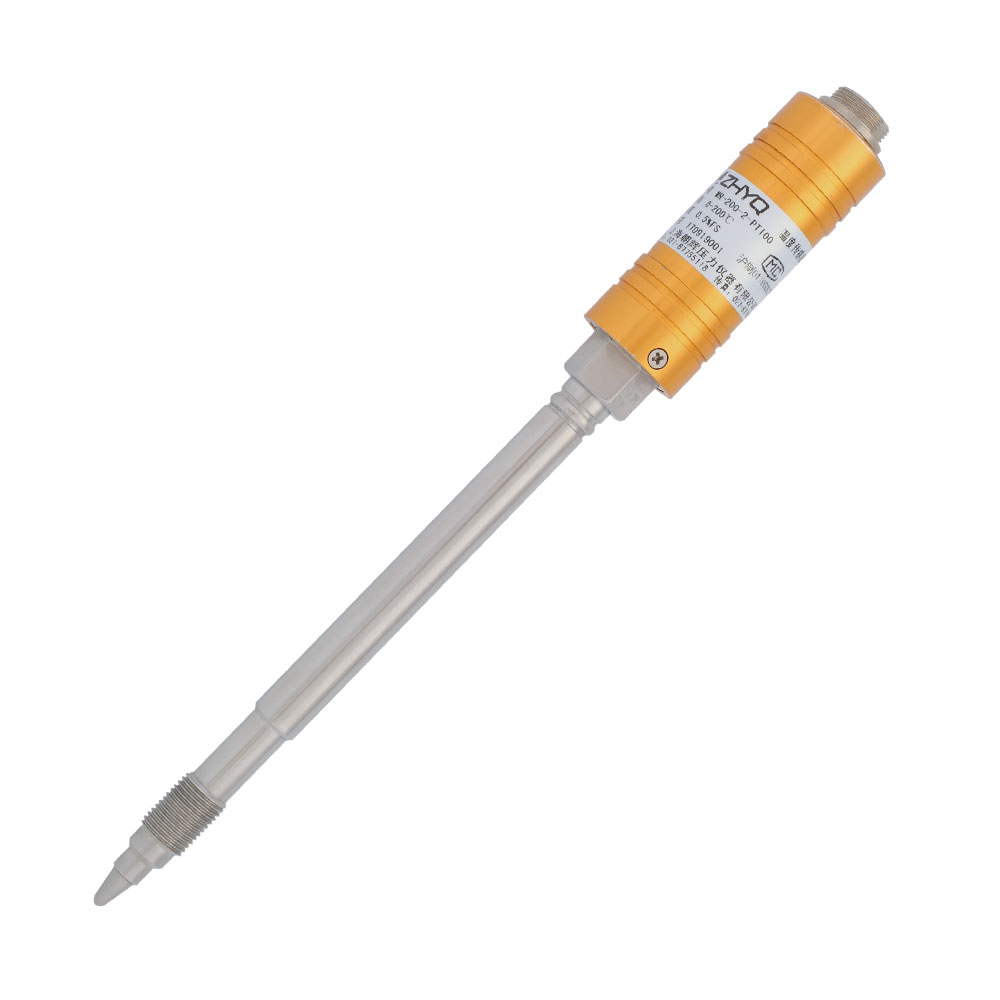

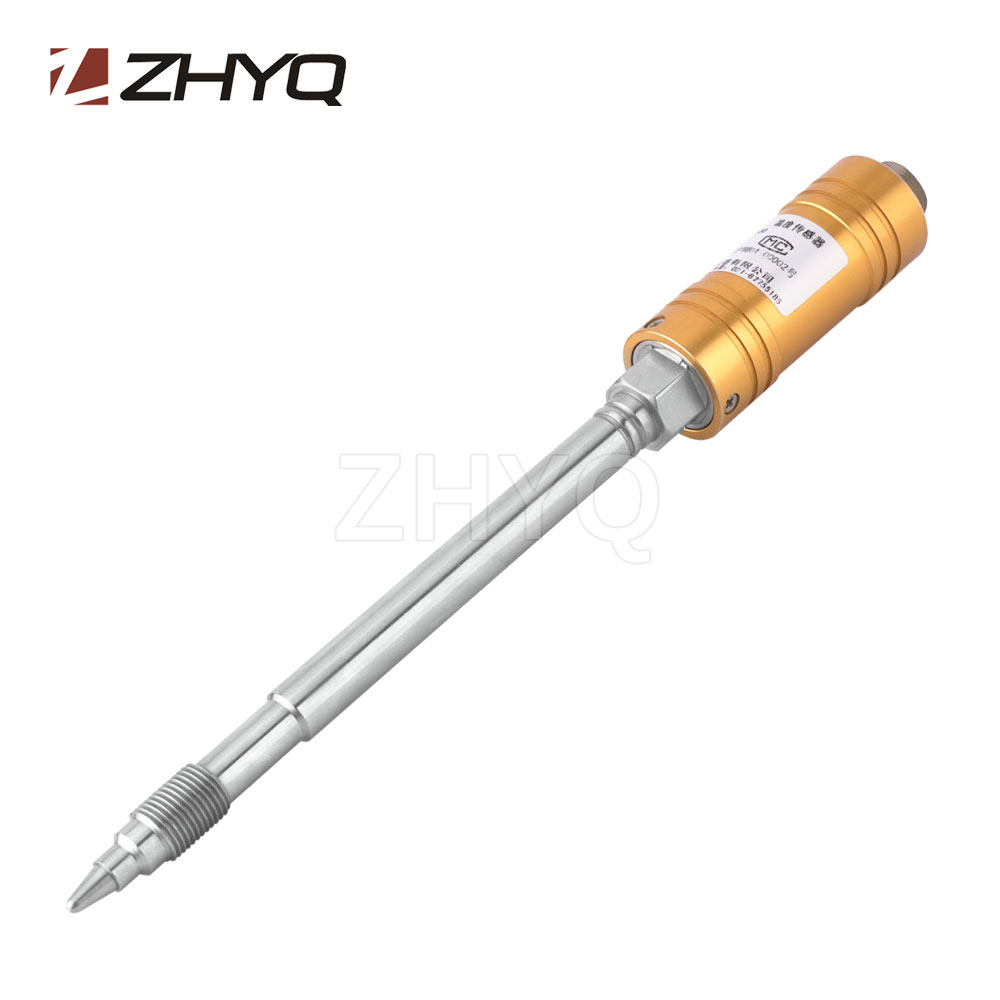

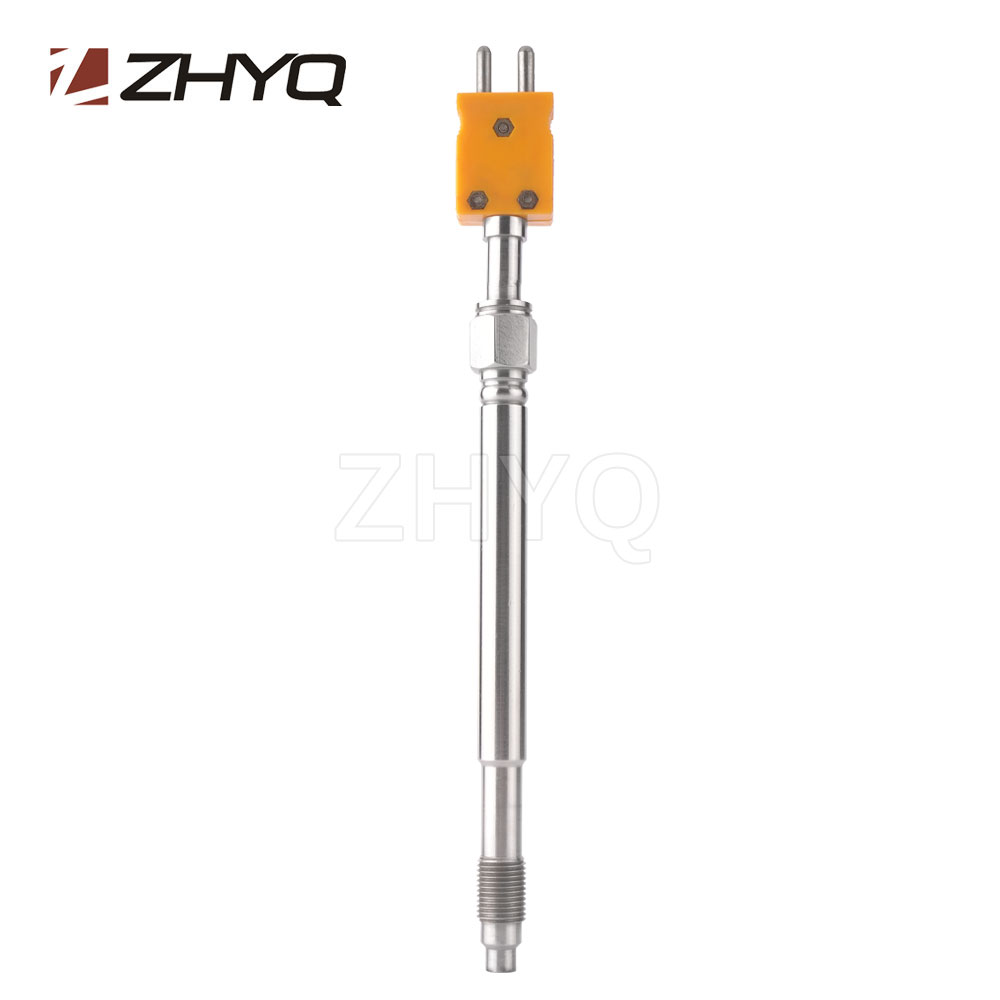

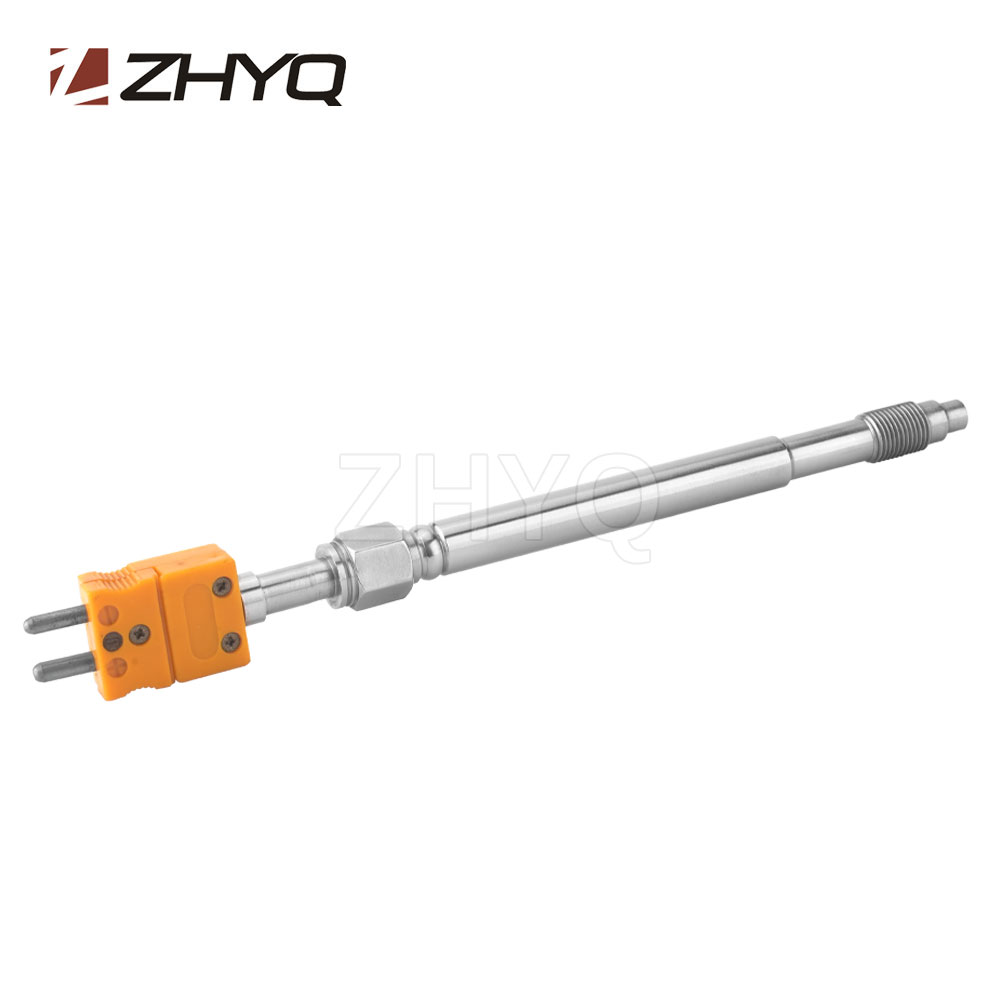

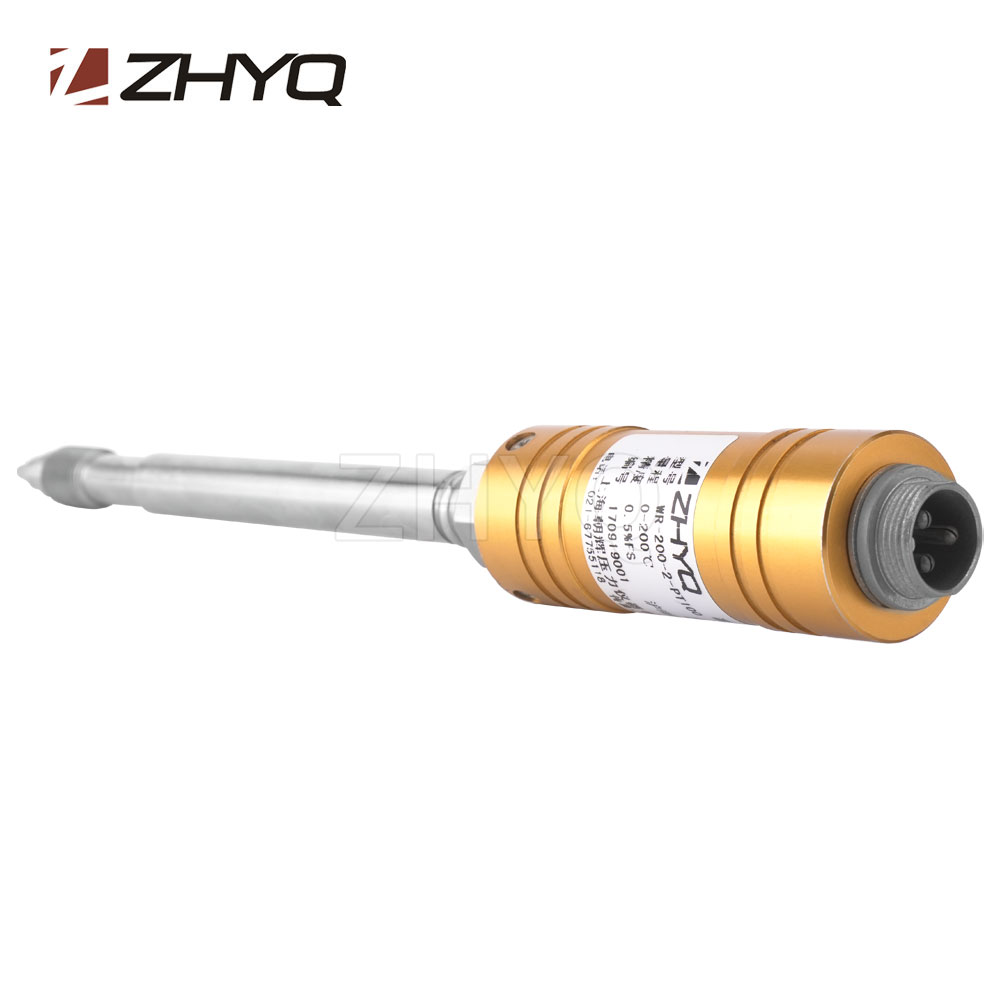

Melt thermocouple

Melt thermocouple

Model:WR-200-2

Description:

Melt thermocouple adopts excellent temperature sensing elements, with the advantage of fast thermal response time, strong thermal resistance capability, high pressure resistance, various temperature elements to choose, diversiform installation etc.

Send inquiry Download PDF
  • Type J, K, E,PT100 optional
  • 0 to 1300℃ measurement range
  • Immersion lengths to match applications
  • Spring or armor adjustable
  • It is used for the temperature measuring and control in the erumpent processing of chemical fiber, rubber plastic, food process and etc.
Temperature range 0 to 1300℃
Output 4-20mA optional
Power supply 10 ~30VDC
error 0.1%FS, 0.3%FS, 0.5%FS
Media compatibility 316L stainless steel
Pressure connection 1/2-20UNF, M14*1.5
Protection tube Stainless steel 6mm and 8mm dia.
Insert length 6inch, 9inch
Tip Length 0mm , 5mm, 10mm, 15mm
Sensing element J, PT100 temperature sensor
Electrical connector 2PIN or PIN special connector
