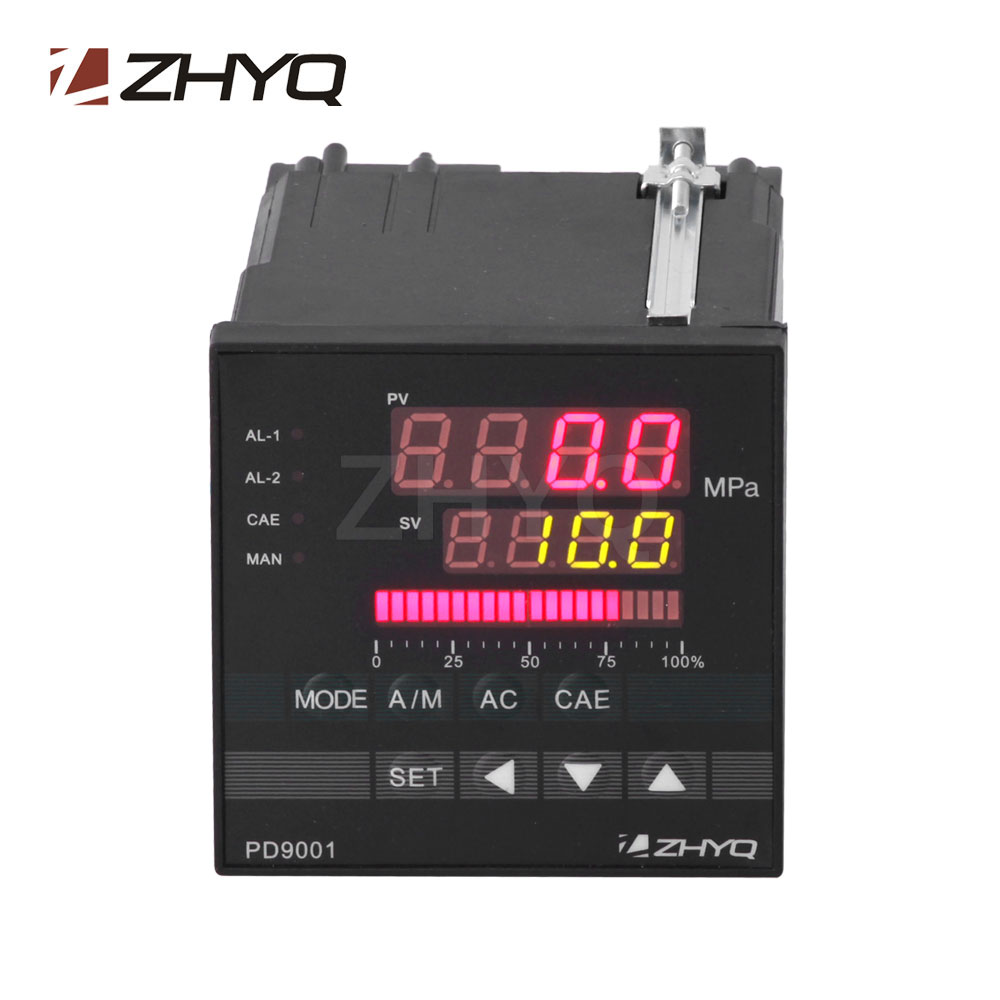

PD9001

PID intelligent pressure controller

Model:PD9001

Description:

The PID intelligent pressure controller integrate a number of international advanced electronic & Single-chip computer technology, It comes with beautiful shape, complete functions & excellent anti-interference performance to ensure the stability and reliability of the system.

Send inquiry Download PDF
  • PID adjustable control
  • Single-chip computer technology
  • Exchangeable for other brand

It is widely used in the process of industrial automation control for pressure measurement and control.

Digital Display Double layer double color four digital display (green and red)
Electronic bar display 20 segments electronical bar indicate the output power
Range 000~9999 (radix point alterable)
Accuracy 0.2%FS±1
Pressure range programmable setting
Sampling frequency 50times/s
Alarm output two circuits with programmable alarm Settings
Input 2mV/V、3.3mV/V、0~10mA、0~20mA、4~20mA

0~5V、1~5V、0~10V ( order stated )

PID output 0~5V、0~10V、4~20mA  ( order stated )
Working power supply 85~265VAC, 50~60Hz
Controller size 96×96mm, Hole size : 92×92mm
